<< C >> Snap Ring And Stop Ring Removal

WARNING: This page is about a different variant/trim than selected.
  1. Press a long socket wrench to the stop ring. Then tap the socket wrench to remove the stop ring to the pinion gear side.

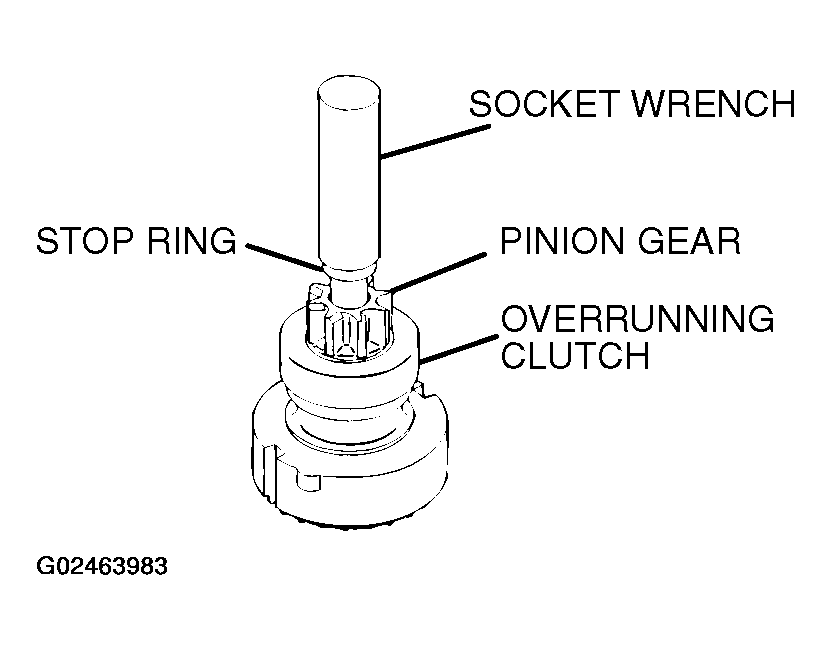

    Fig 1: Removing Stop Ring To Pinion Gear Side
    G02463983Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. After removing the snap ring (by using snap-ring pliers), remove the stop ring and the overrunning clutch.

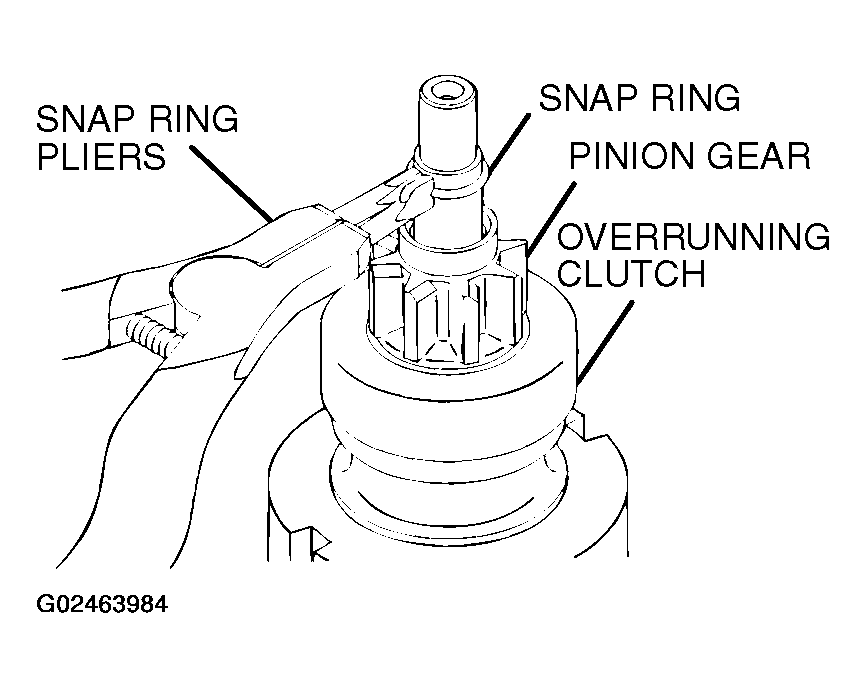

    Fig 2: Removing Stop Ring And Overrunning Clutch
    G02463984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
