Removal And Installation < 2.4L Engine Vehicles For CALIFORNIA >: Notes

WARNING: This page is about a different variant/trim than selected.

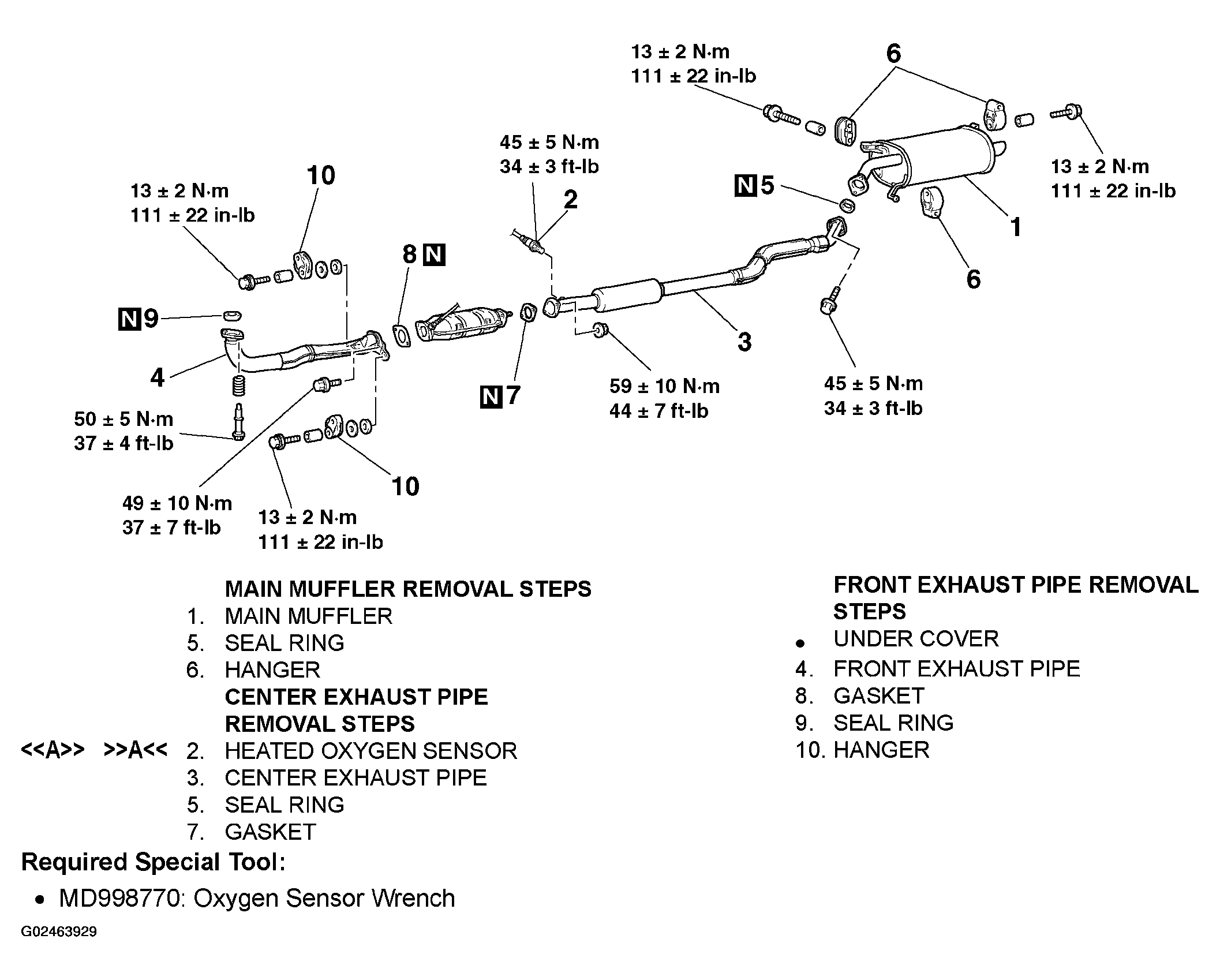

Fig 1: Exploded View Of Exhaust Pipe And Main Muffler (2.4L - California)
G02463929Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
