<< A >> Front Bracket Assembly Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not insert a screwdriver too deep. The stator coil will be damaged.

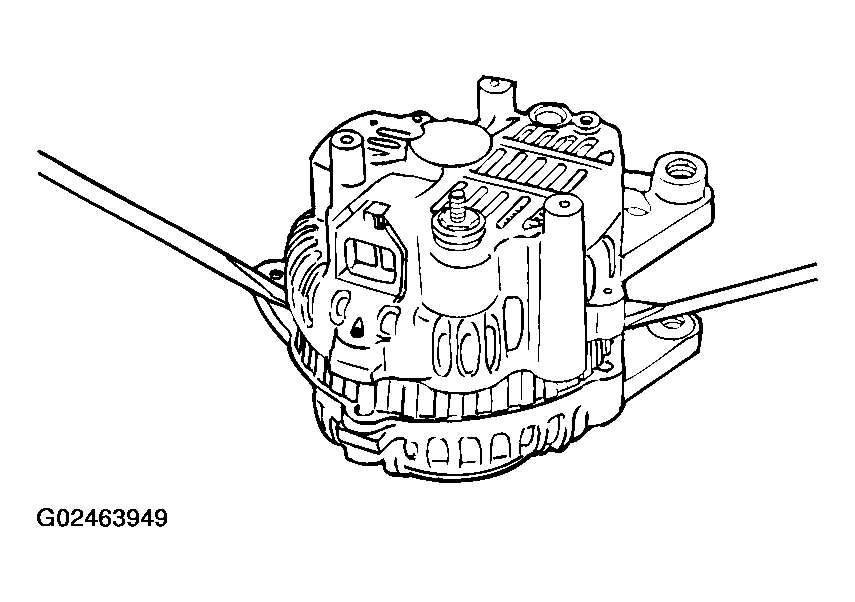

Insert a flat-tipped screwdriver between the front bracket assembly and the stator core, and pry it downward to separate the stator and front bracket assembly.
