Removal And Installation < 2.0L Engine >: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

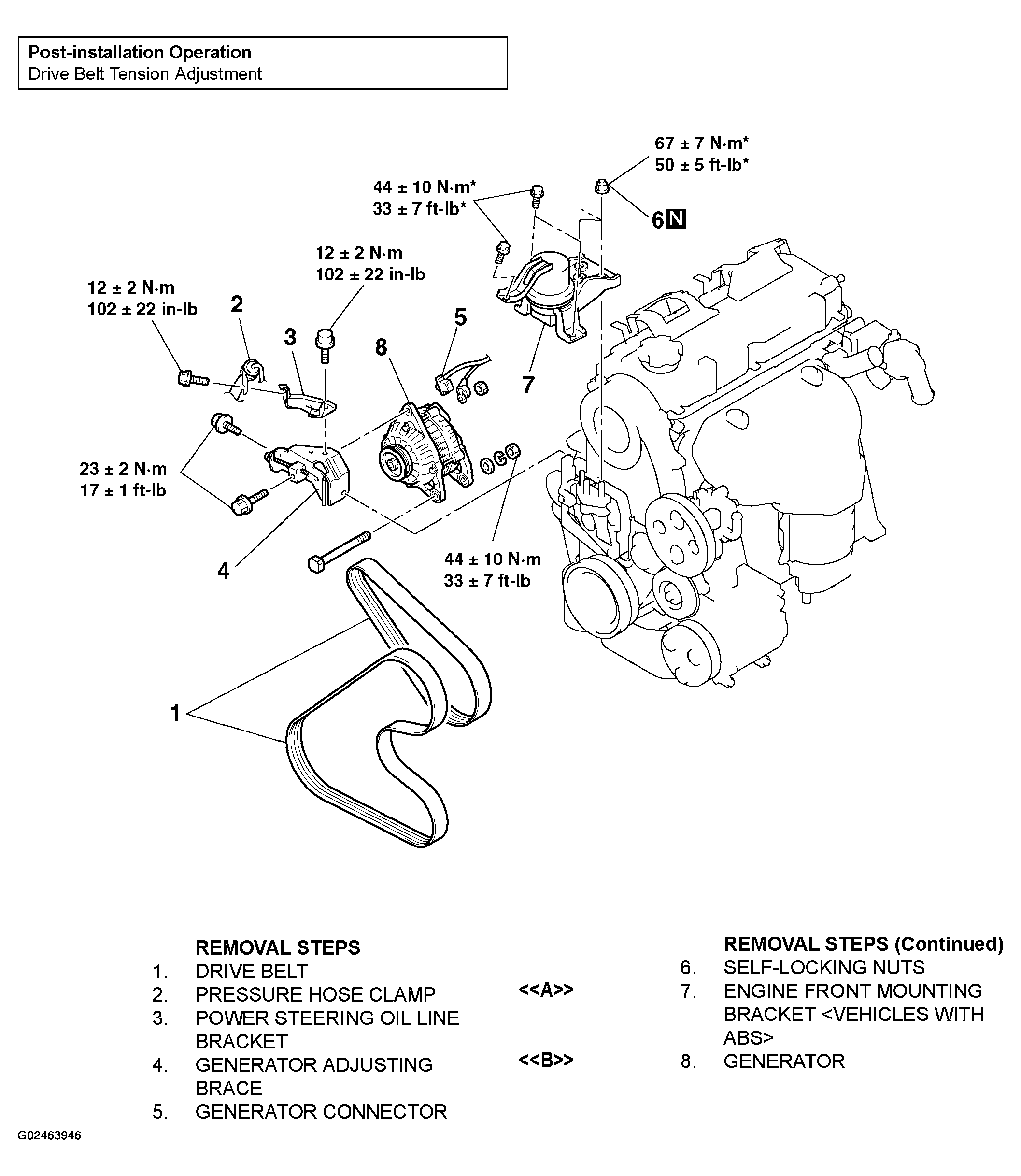

Fig 1: Removing/Installing Generator Assembly (2.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
