Abnormal Waveforms

WARNING: This page is about a different variant/trim than selected.

Example 1
PROBABLE CAUSE: Open circuit in diode

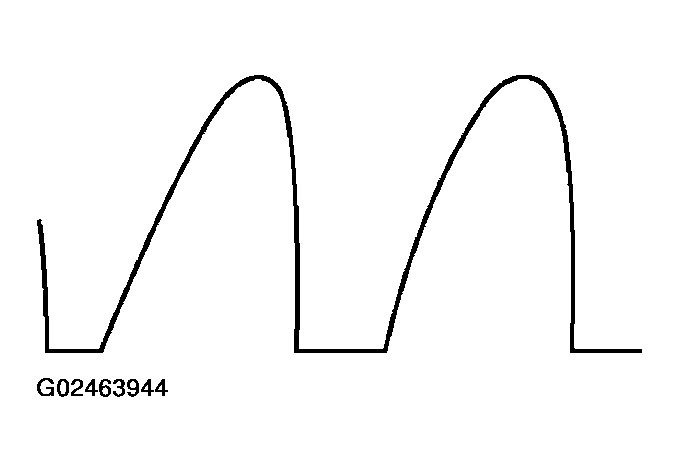

Fig 1: Identifying Abnormal Waveforms - Open Circuit In Diode
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Example 2
PROBABLE CAUSE: Short-circuit in diode

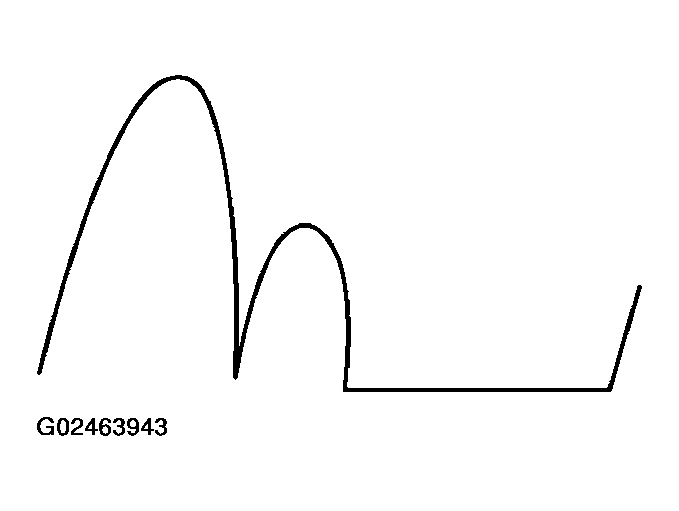

Fig 2: Identifying Abnormal Waveforms - Short-Circuit In Diode
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Example 3
PROBABLE CAUSE: Open circuit in stator coil

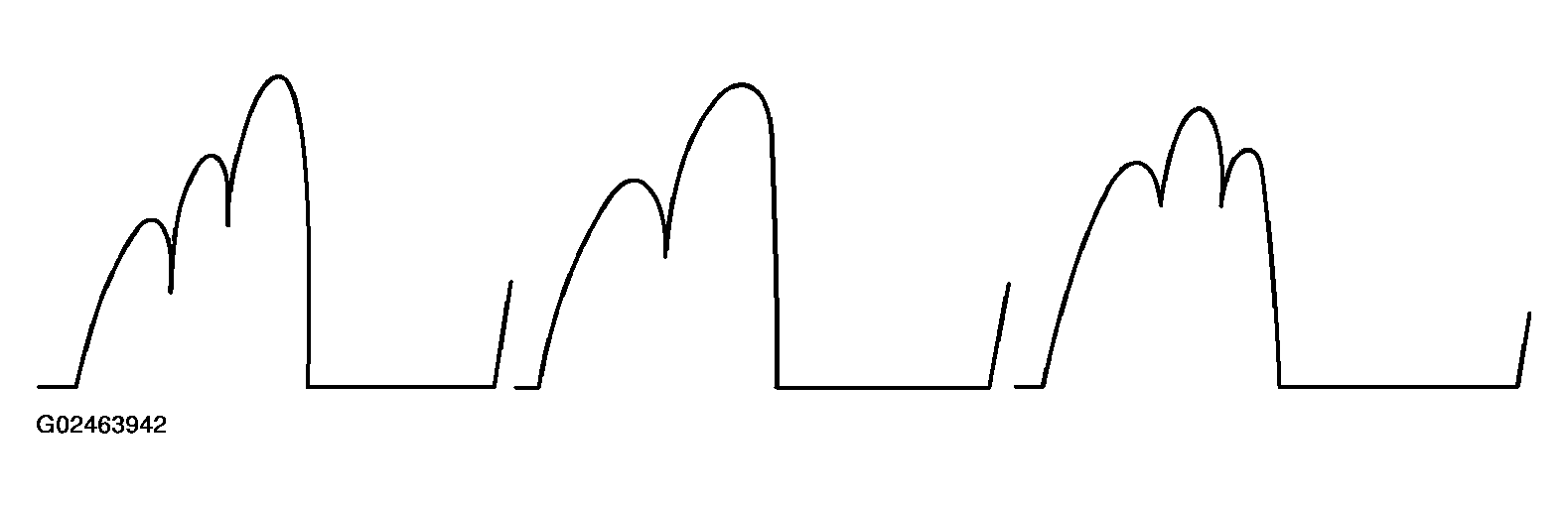

Fig 3: Identifying Abnormal Waveforms - Open Circuit In Stator Coil
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Example 4
PROBABLE CAUSE: Short-circuit in stator coil

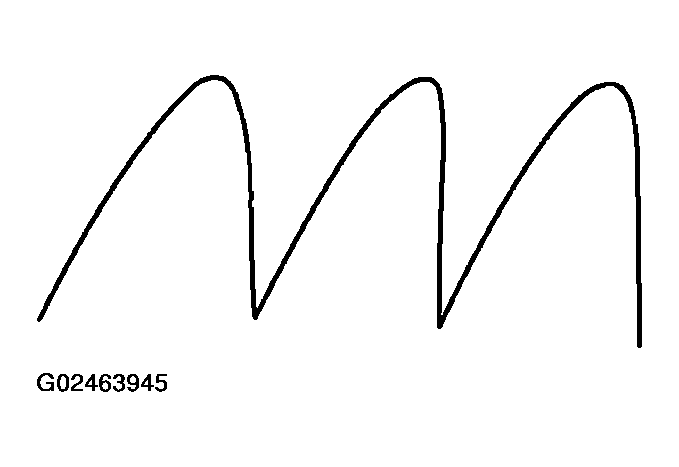

Fig 4: Identifying Abnormal Waveforms - Short-Circuit In Stator Coil
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
