>> C << Transfer Driven Gear Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the output shaft on the press support stand.
  2. Using special tools MD998823, MD998812 and MD998813, press in the transfer driven gear.

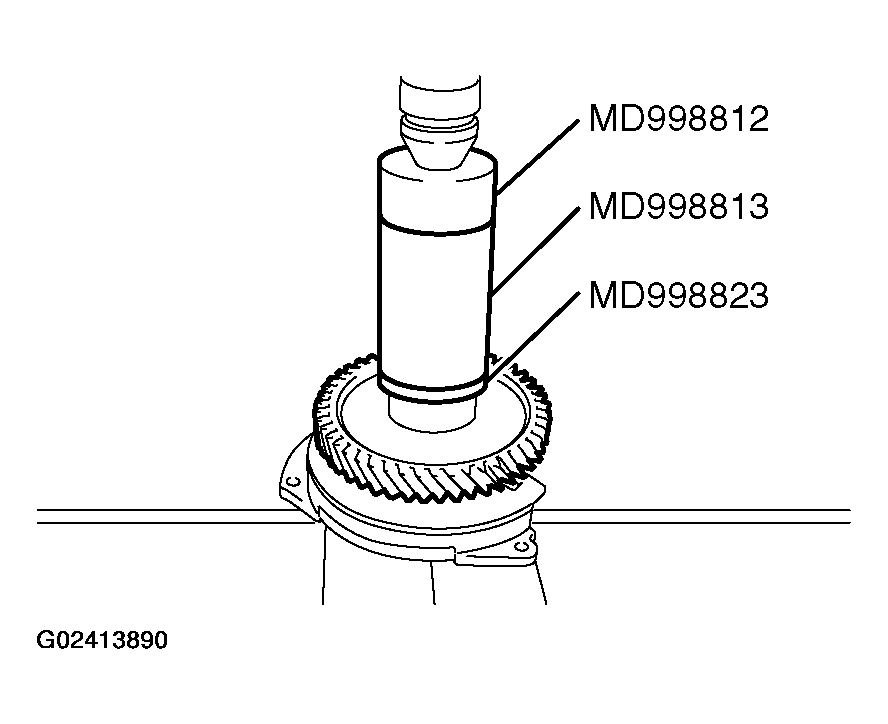

    Fig 1: Pressing In Transfer Driven Gear
    G02413890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
