>> A << Needle Bearing Installation

WARNING: This page is about a different variant/trim than selected.

Press fit the needle bearing into the control housing side as shown in illustration.

Make sure that the side with the model number stamped on it faces the end of the control housing as shown in illustration.

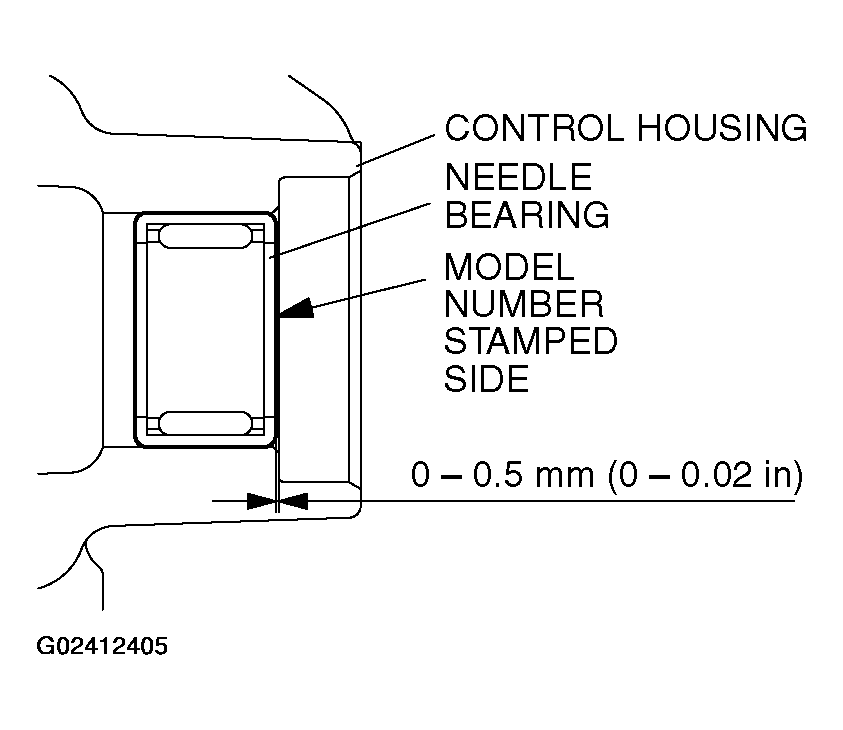

Fig 1: Installing Needle Bearing Into Control Housing Side
G02412405Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
