>> D << Spring Pin Installation

WARNING: This page is about a different variant/trim than selected.

Drive in the spring pin so that the slit is in the direction shown in the illustration.

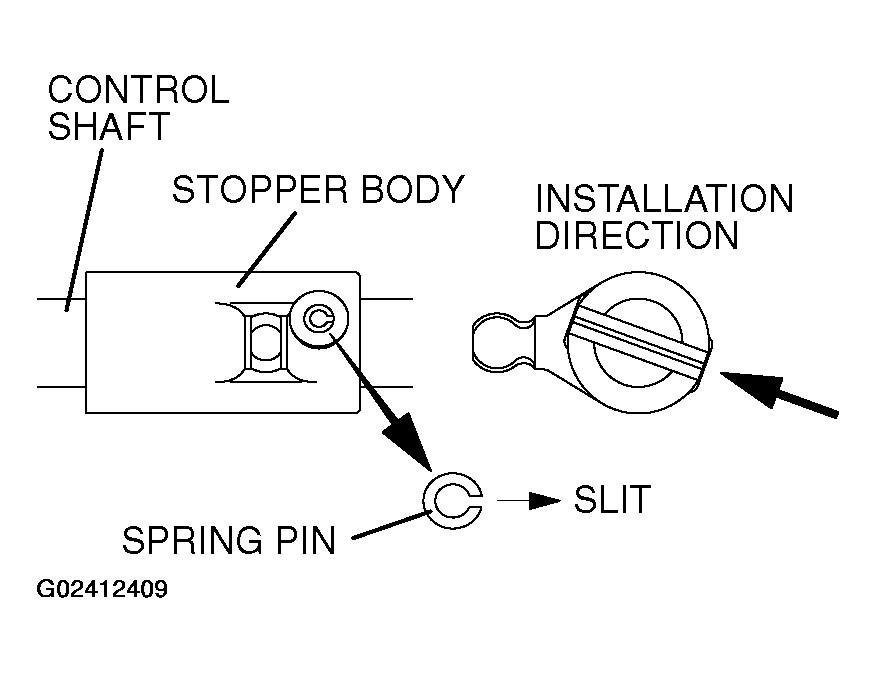

Fig 1: Identifying Spring Pin Drive Direction
G02412409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
