<< A >> Lock Pin Removal

WARNING: This page is about a different variant/trim than selected.

Drive out the lock pin from the direction shown in illustration.

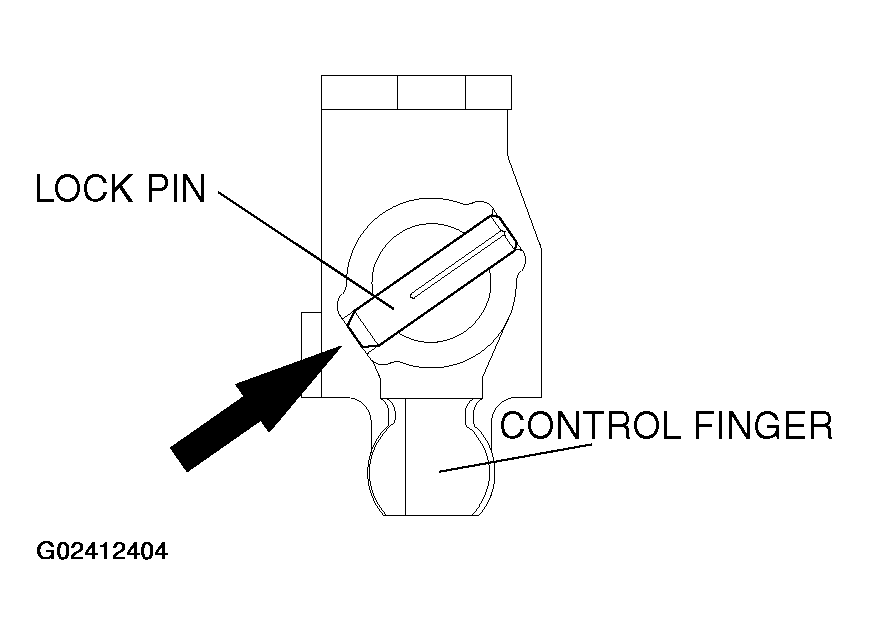

Fig 1: Identifying Lock Pin Removal Direction
G02412404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
