>> D << Synchronizer Spring Installation

WARNING: This page is about a different variant/trim than selected.

Install the synchronizer spring onto the synchronizer ring as shown in illustration.

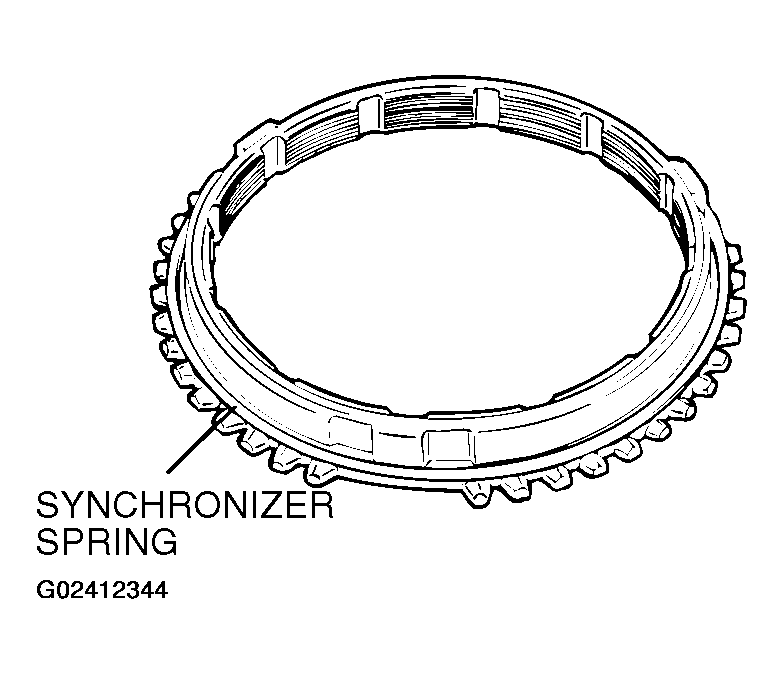

Fig 1: Installing Synchronizer Spring Onto Synchronizer Ring
G02412344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
