>> F << 3RD-4TH Speed Synchronizer Hub Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Make sure that the synchronizer ring has been perfectly matched to the 3rd speed gear cone.
  3. Check the installation direction of the 3rd-4th speed synchronizer hub, and put it on the input shaft.

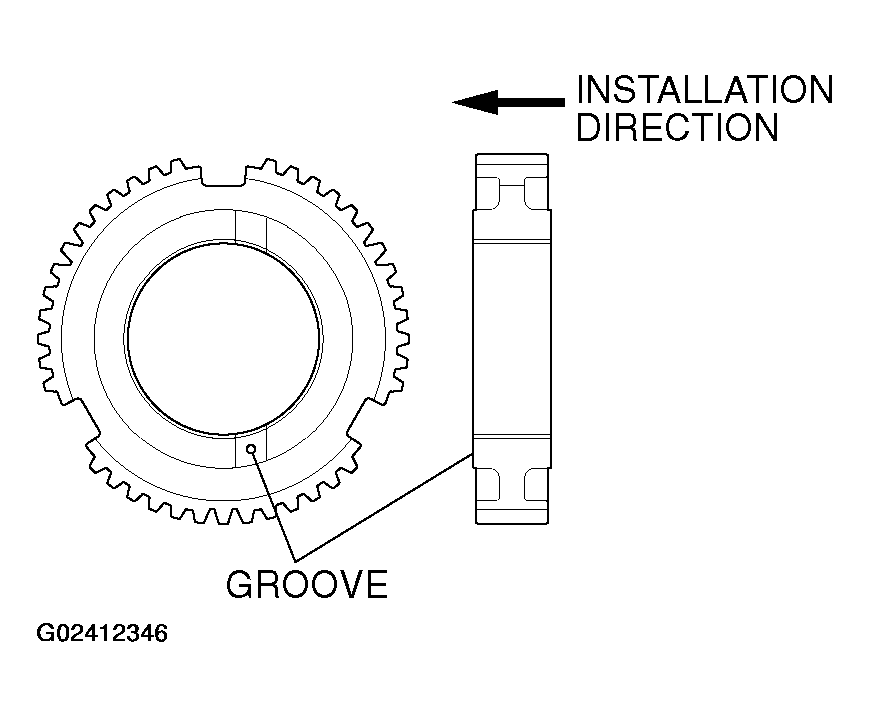

    Fig 1: Identifying Installation Direction Of 3rd-4th Speed Synchronizer Hub
    G02412346Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Using special tools MD998812, MD998813 and MD998825, press install the 3rd-4th speed synchronizer hub with the press.
  5. Make sure that the synchronizer ring can rotate freely.

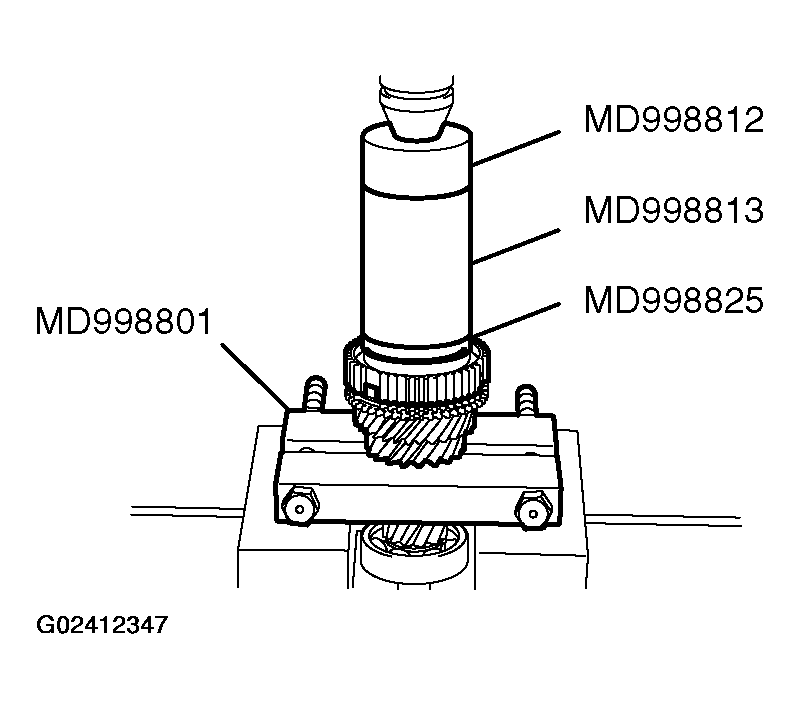

    Fig 2: Installing 3rd-4th Speed Synchronizer Hub
    G02412347Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
