>> G << Synchronizer Sleeve Installation

WARNING: This page is about a different variant/trim than selected.
  1. Check the installation direction of the synchronizer sleeve, and install it onto the 3rd-4th speed synchronizer hub.

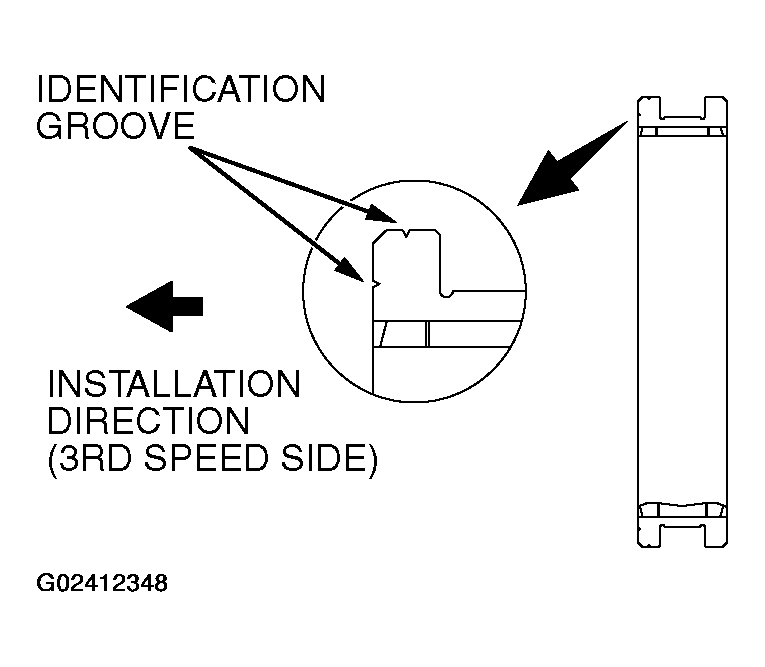

    Fig 1: Identifying Installation Direction Of Synchronizer Sleeve
    G02412348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

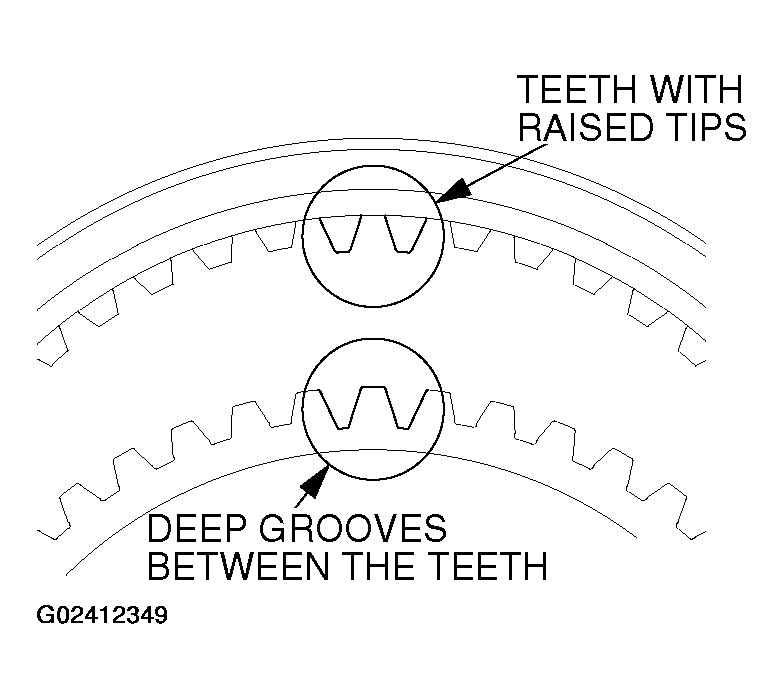

    Fig 2: Installing Synchronizer Sleeve Teeth With Raised Tips And Deep Grooves Between Teeth
    G02412349Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
