>> H << 4TH Speed Gear Sleeve Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812, MD998813 and MD998824, install the 4th speed gear sleeve with the press.

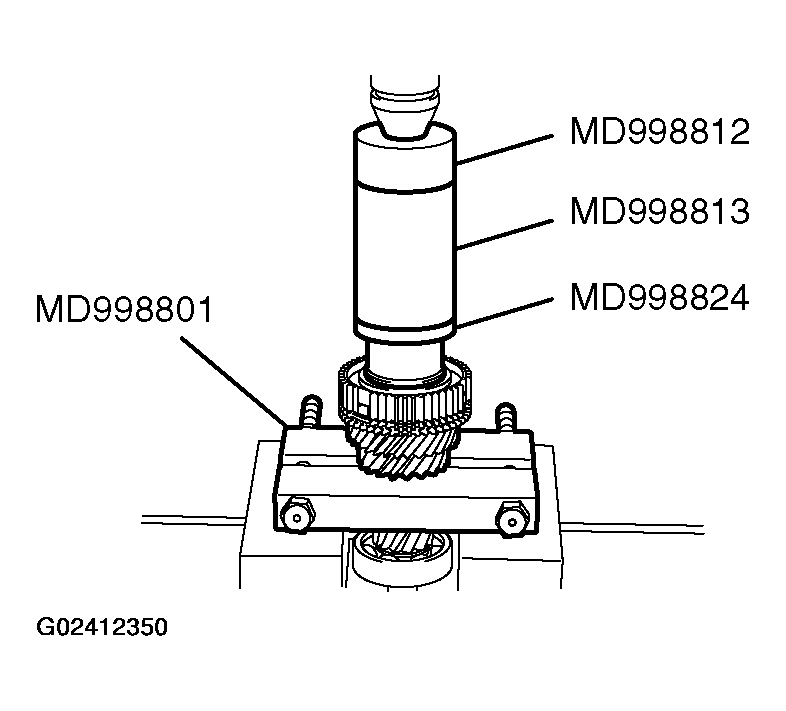

    Fig 1: Installing 4th Speed Gear Sleeve
    G02412350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
