>> I << 5TH Speed Gear Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812, MD998813 and MD998824, install the 5th speed gear onto the input shaft with the press.

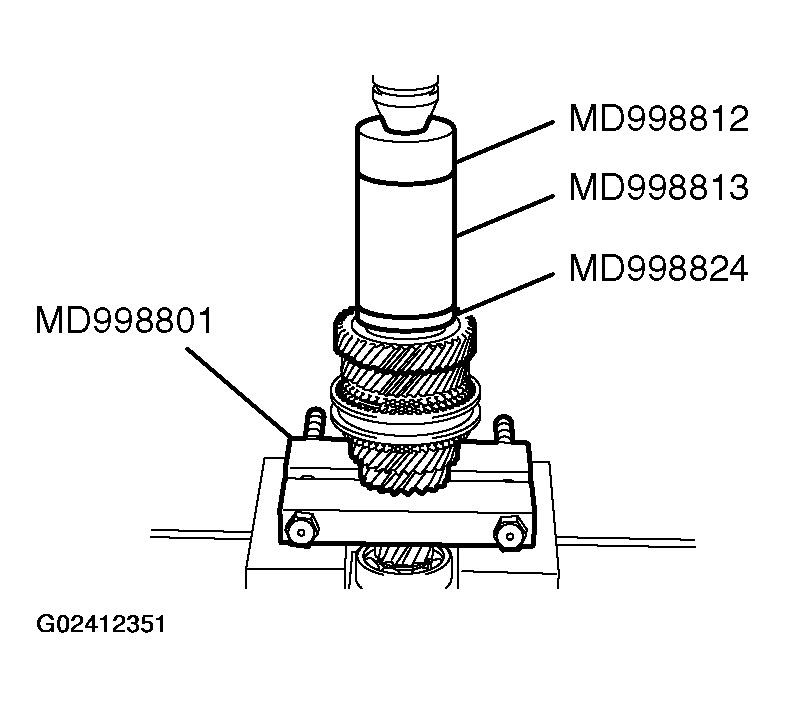

    Fig 1: Installing 5th Speed Gear Onto Input Shaft
    G02412351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
