>> L << Ball Bearing Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812 and MD998818, install the ball bearing onto the input shaft with the press.

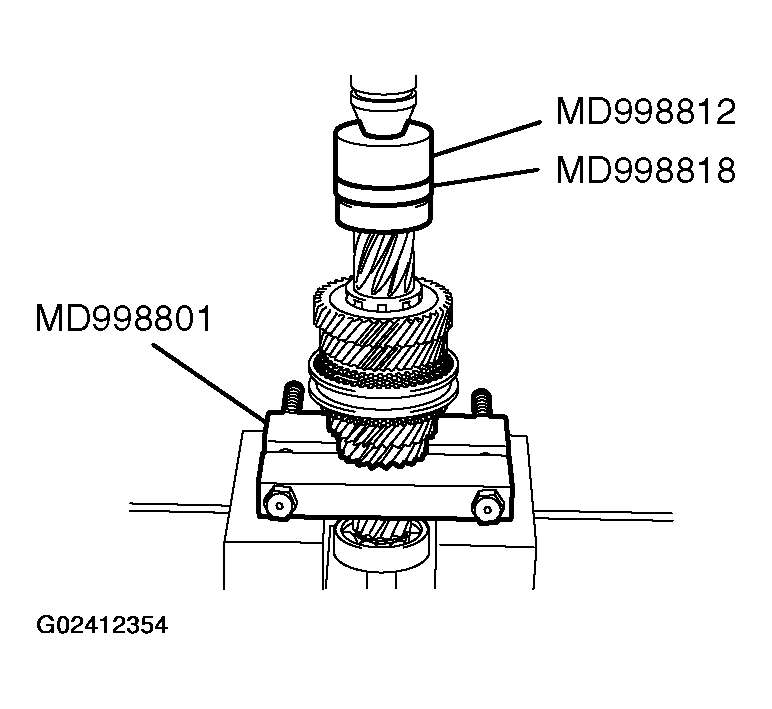

    Fig 1: Installing Ball Bearing Onto Input Shaft
    G02412354Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
