<< B >> Thrust Plate Stopper Removal

WARNING: This page is about a different variant/trim than selected.

Using a screwdriver, pry up at the position shown in the illustration and remove the thrust plate stopper.

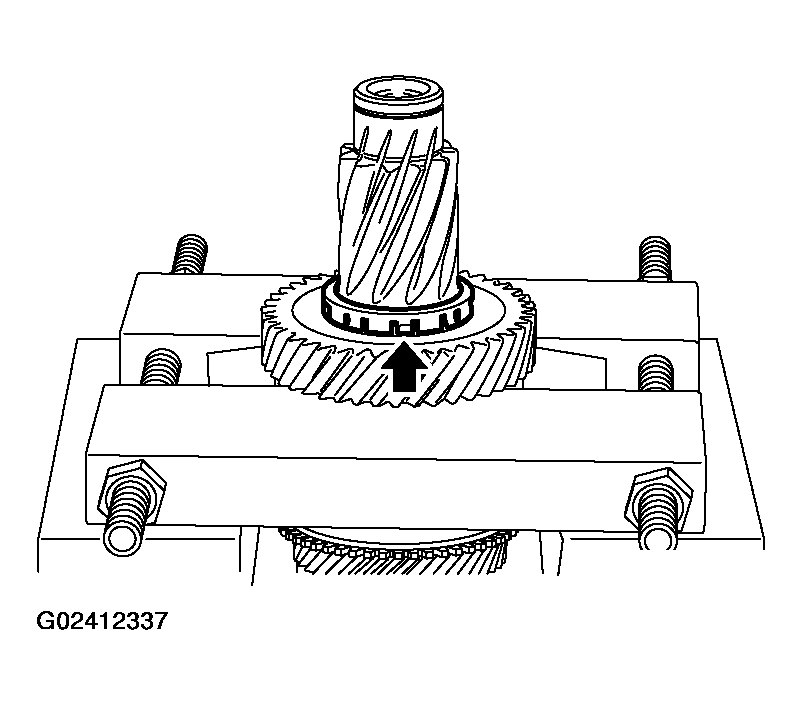

Fig 1: Removing Thrust Plate Stopper
G02412337Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
