Disassembly Steps And Special Tools

WARNING: This page is about a different variant/trim than selected.

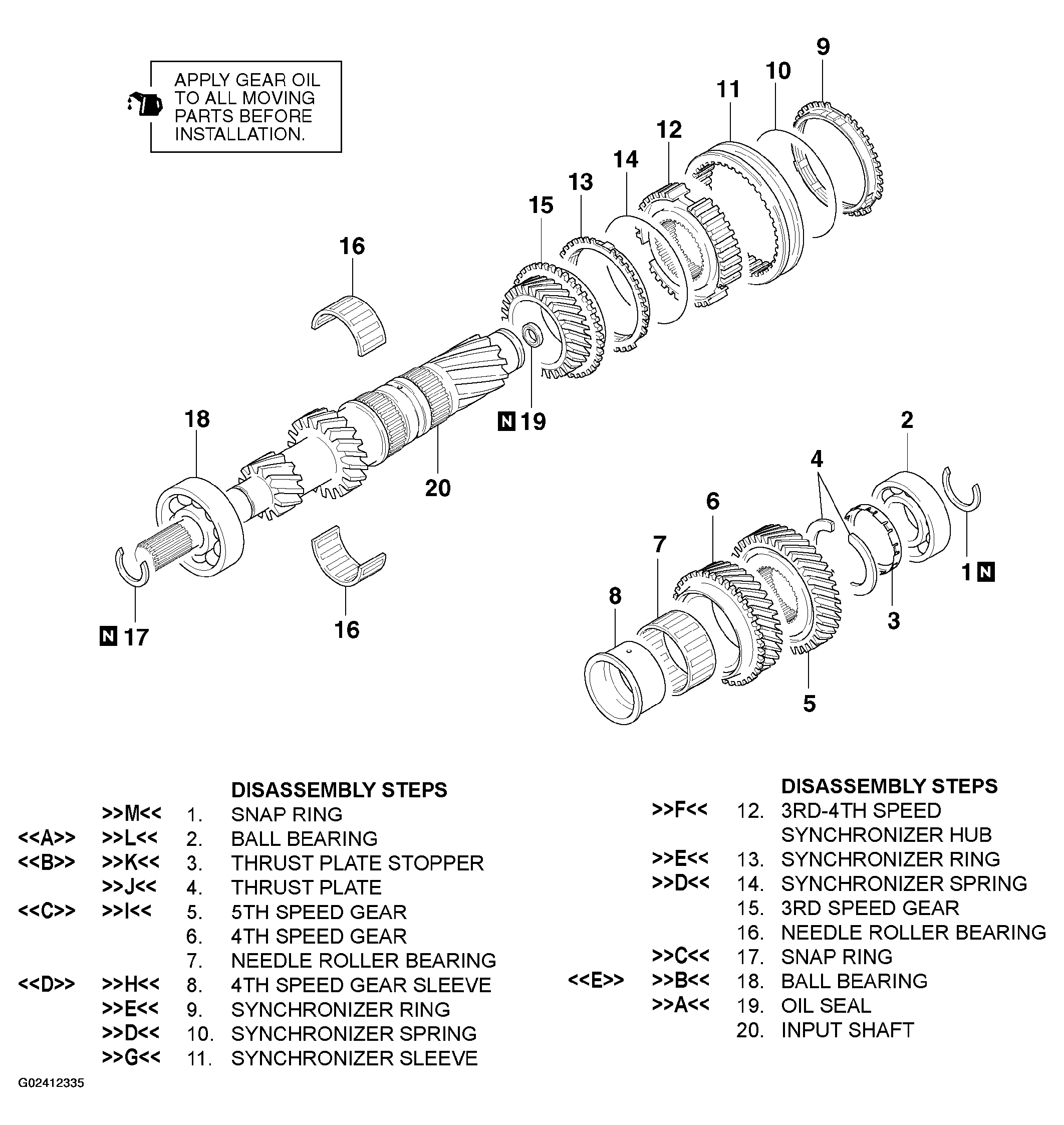

Fig 1: Disassembly Steps Of Input Shaft Components
G02412335Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
