>> B << Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the thickest snap ring that can be fitted in the groove of output shaft.
  2. Make sure that the roller bearing inner race end play meets the standard value.
    • Standard value: 0 - 0.12 mm (0 - 0.0047 inch)

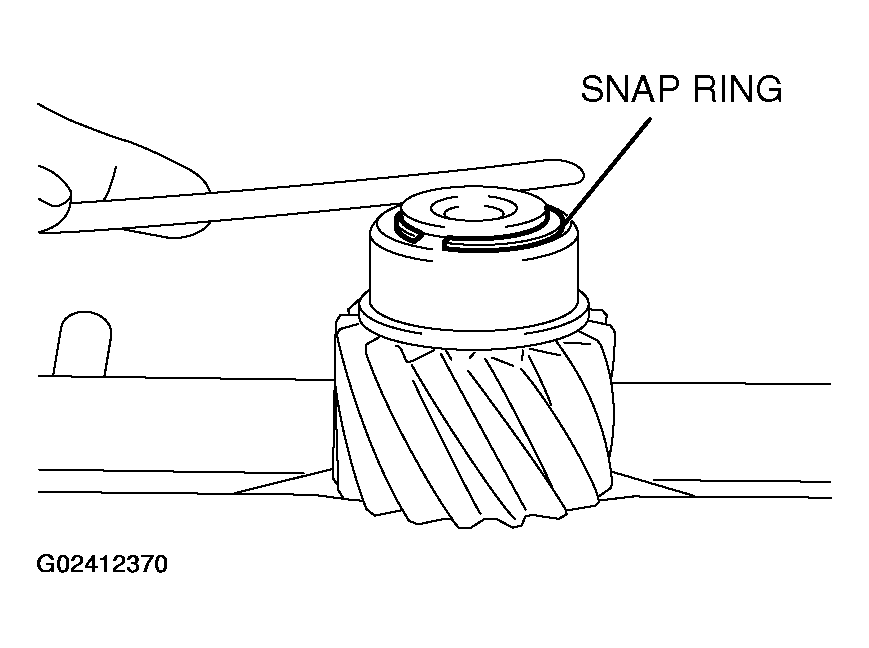

    Fig 1: Measuring Roller Bearing Inner Race End Play
    G02412370Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
