>> C << 1ST Speed Gear Sleeve Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the output shaft on the press support stand.
  2. Using special tools MD998812, MD998814 and MD998825, install the 1st speed gear sleeve with the press.

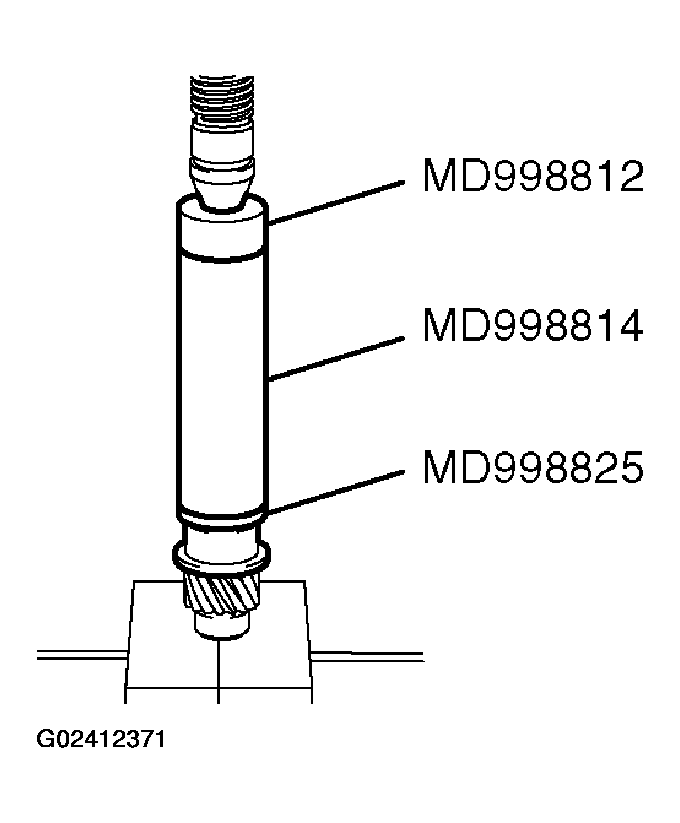

    Fig 1: Installing 1st Speed Gear Sleeve
    G02412371Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
