>> E << 1ST-2ND Speed Synchronizer Hub Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the output shaft on the press support stand.
  2. Check that the 1st-2nd speed synchronizer hub is in the correct installation direction, and put it on the output shaft.
  3. Using special tools MD998812, MD998814 and MD998825, install the 1st-2nd speed synchronizer hub with the press.
  4. Make sure that the outer synchronizer ring on the 1st speed gear side can rotate freely.

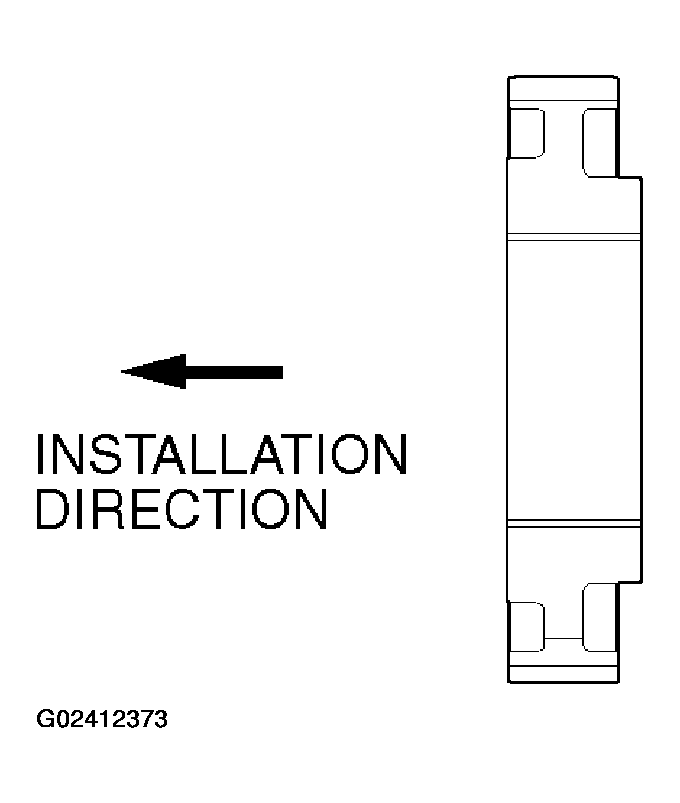

    Fig 1: Identifying 1st-2nd Speed Synchronizer Hub Installation Direction
    G02412373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

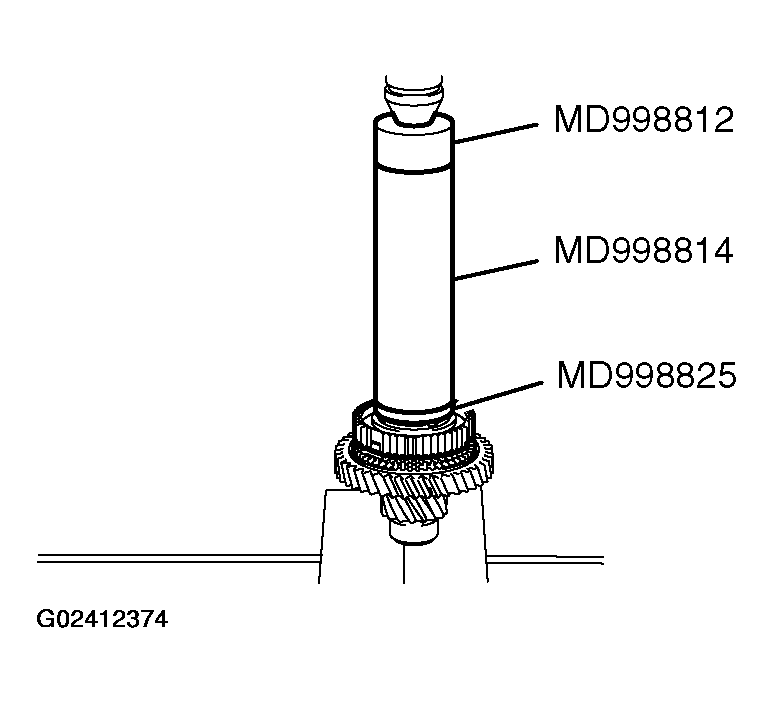

    Fig 2: Installing 1st-2nd Speed Synchronizer Hub
    G02412374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
