>> F << Synchronizer Sleeve Installation

WARNING: This page is about a different variant/trim than selected.
  1. Check that the synchronizer sleeve is in the correct direction for installation, and install it on the 1st-2nd speed synchronizer hub.

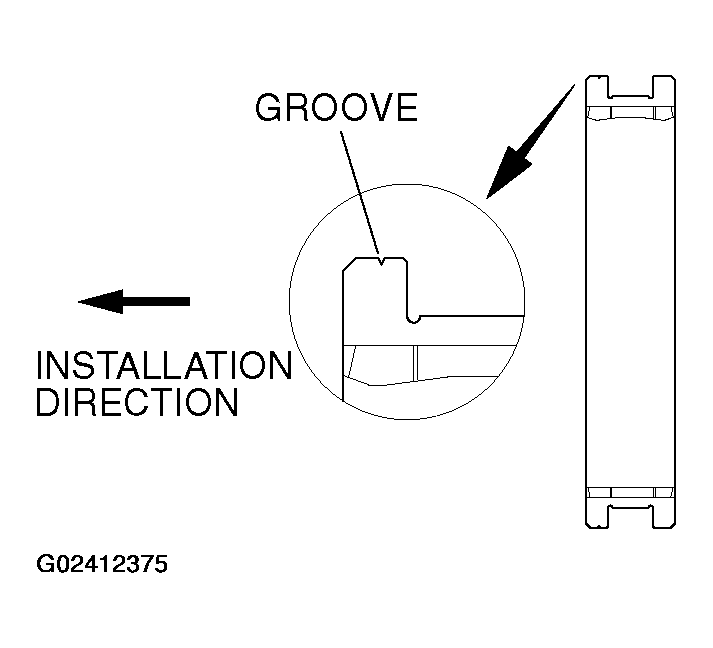

    Fig 1: Identifying Synchronizer Sleeve Installation Direction
    G02412375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

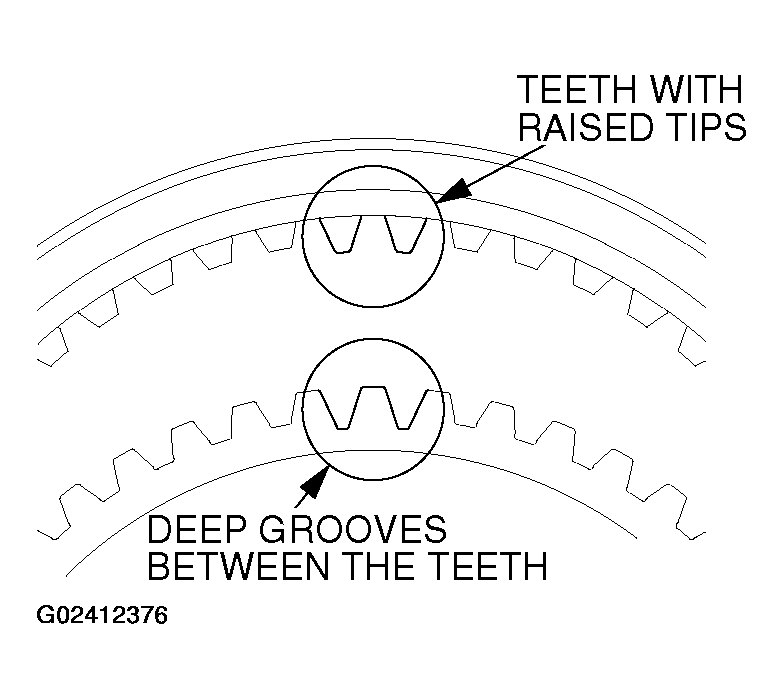

    Fig 2: Identifying Synchronizer Sleeve Teeth With Raised Tips And Deep Grooves Between Teeth
    G02412376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
