>> J << 4TH Speed Gear Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the output shaft on the press support stand.
  2. Using special tools MD998812, MD998813 and MD998819, install the 4th speed gear onto the output shaft with the press.

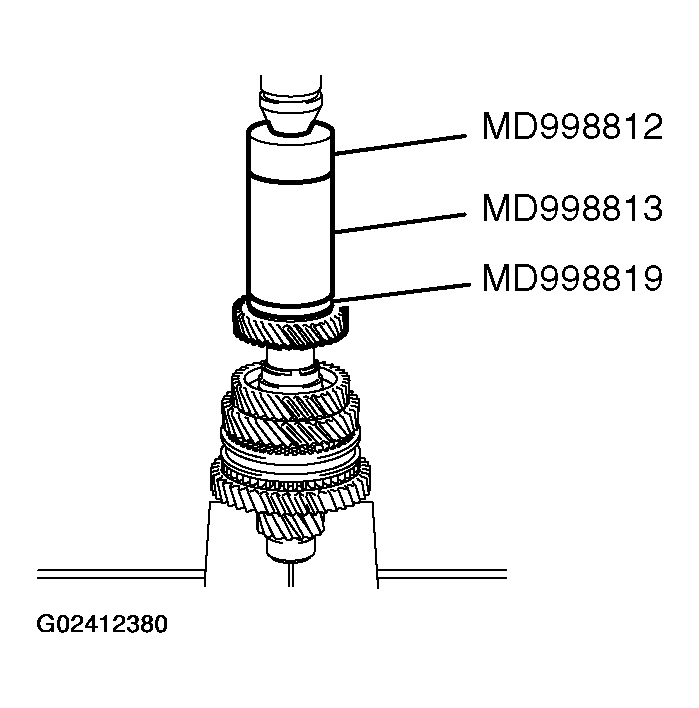

    Fig 1: Installing 4th Speed Gear Onto Output Shaft
    G02412380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
