>> M << Synchronizer Ring Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: There is a 5th speed synchronizer ring and a reverse synchronizer ring. Be careful not to confuse the two when installing, as a mistake can effect the shift feeling.
  1. Check for the presence of identification notches on the synchronizer ring.
    • No notches: 5th speed synchronizer ring
    • Six notches: Reverse synchronizer ring
  2. Install the synchronizer ring so that it fits completely over the machined cone of the gear.

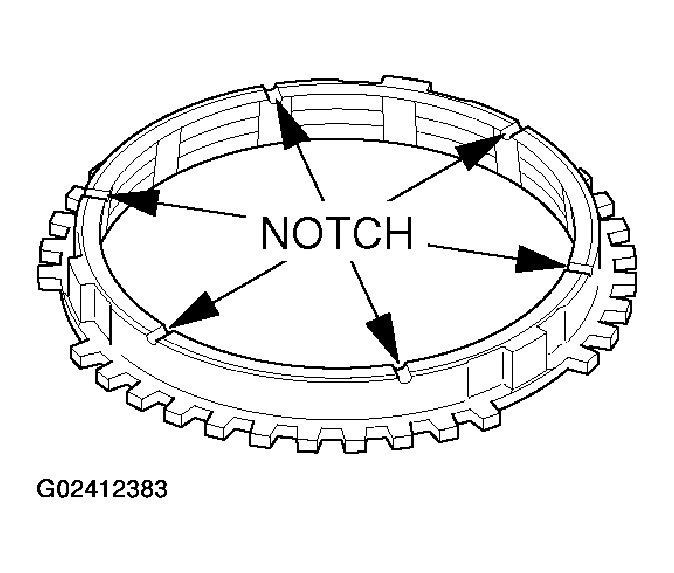

    Fig 1: Identifying Notches On Synchronizer Ring
    G02412383Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
