>> N << 5TH Speed-Reverse Synchronizer Hub Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the output shaft on the press support stand.
  2. Make sure that the synchronizer ring is fitted correctly on the cone of the 5th speed gear.
  3. Check that the 5th speed-reverse synchronizer hub is oriented correctly for installation, and fit it on the output shaft.

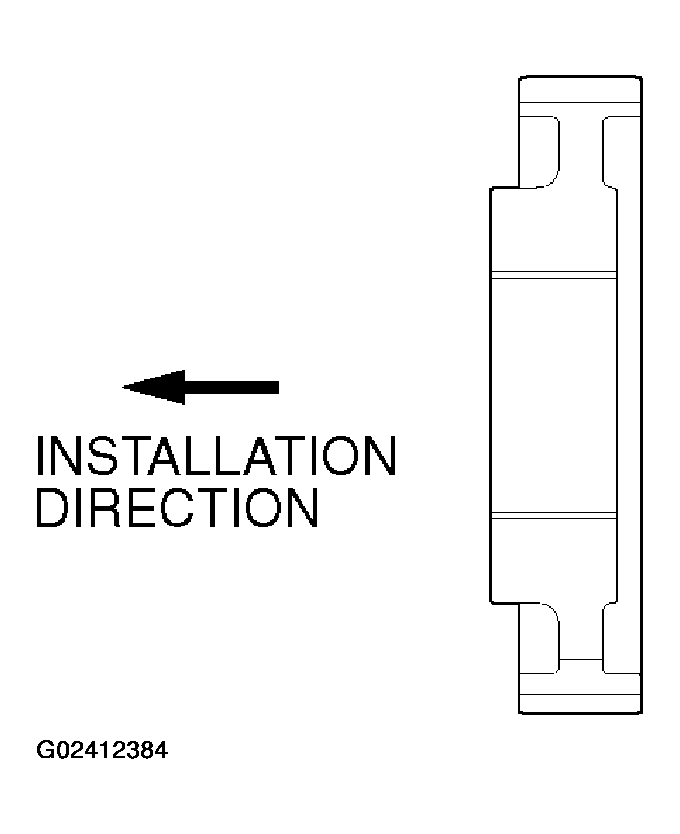

    Fig 1: Identifying 5th Speed-Reverse Synchronizer Hub Installation Direction
    G02412384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Using special tools MD98812, MD998813 and MD998819, press install the 5th speed-reverse synchronizer hub with the press.
  5. Make sure that the synchronizer ring on the 5th speed gear side can rotate freely.

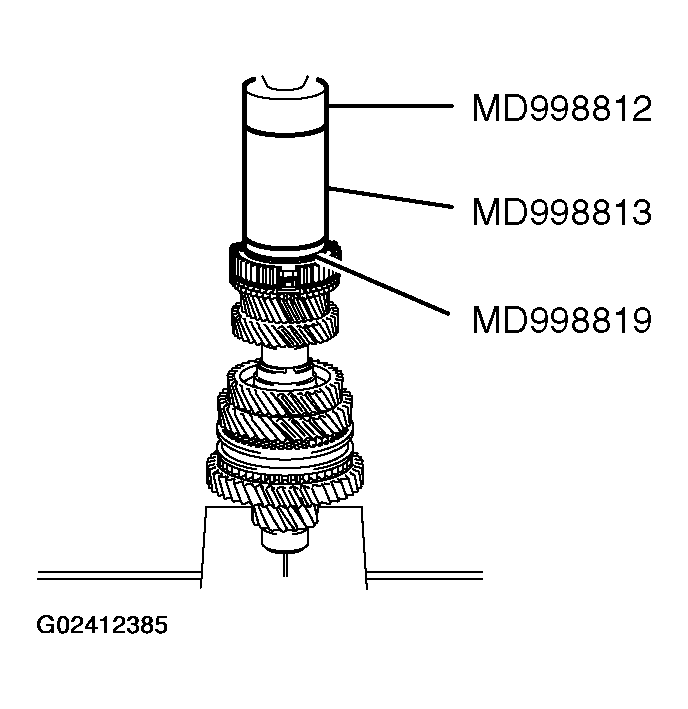

    Fig 2: Installing 5th Speed-Reverse Synchronizer Hub
    G02412385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
