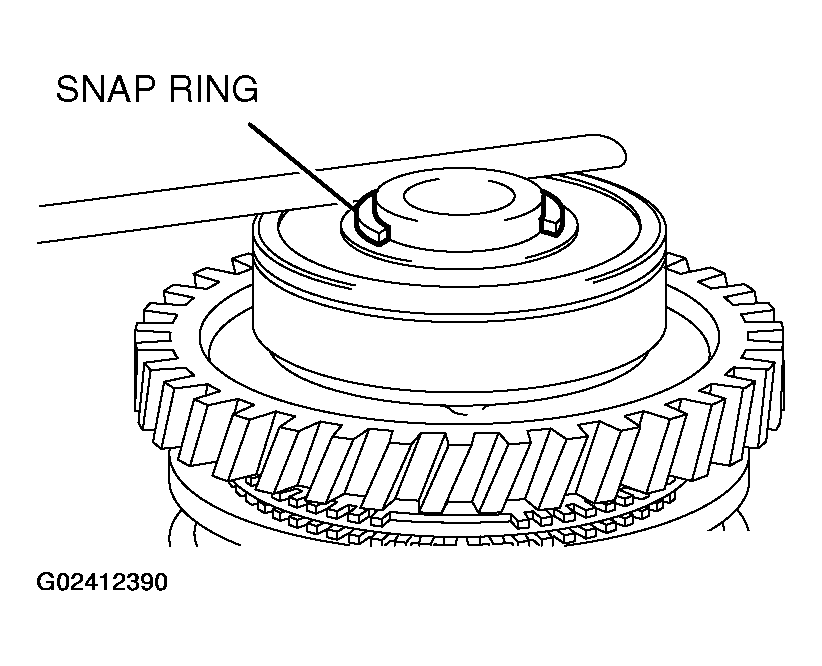

>> R << Snap Ring Installation
WARNING: This page is about a different variant/trim than selected.
- Install the thickest snap ring that can be fitted in the groove of output shaft.
- Make sure that the ball bearing end play meets the standard value.
- Standard value: 0 - 0.09 mm (0 - 0.0035 inch)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
