>> A << Dust Cover And Select Lever Bushing Installation

WARNING: This page is about a different variant/trim than selected.

Make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled as shown in illustration.

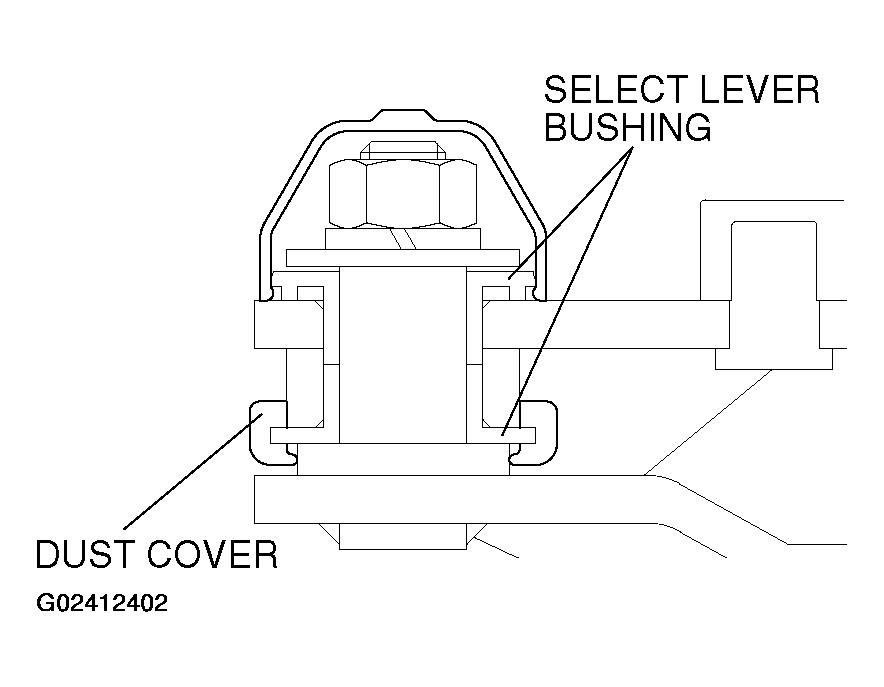

Fig 1: Installing Dust Cover And Select Lever Bushing
G02412402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
