Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

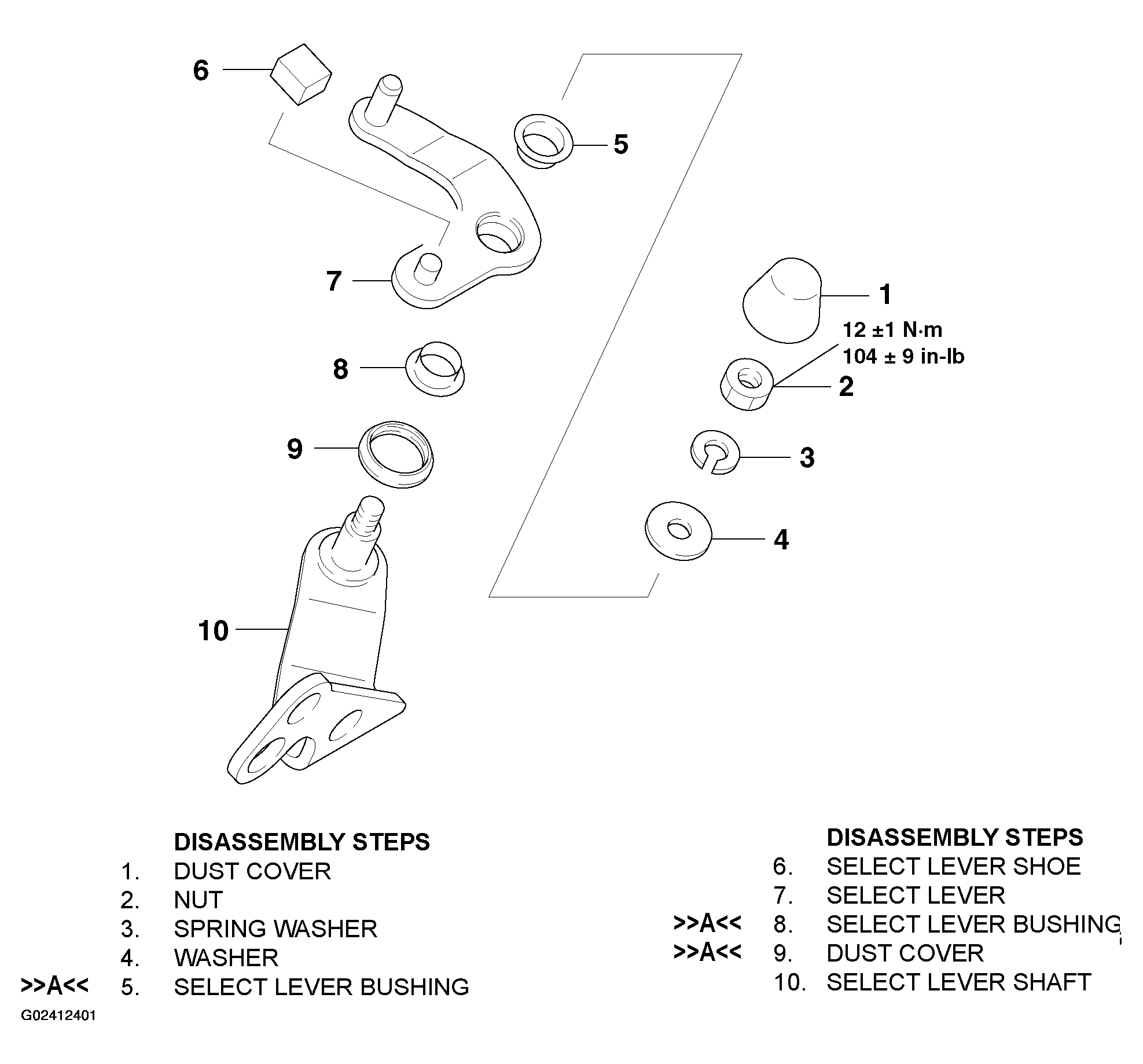

Fig 1: Disassembly Steps Of Select Lever Components
G02412401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
