>> C << Spring Pin Installation
WARNING: This page is about a different variant/trim than selected.
- Align the pin holes in the shift rail and shift fork.

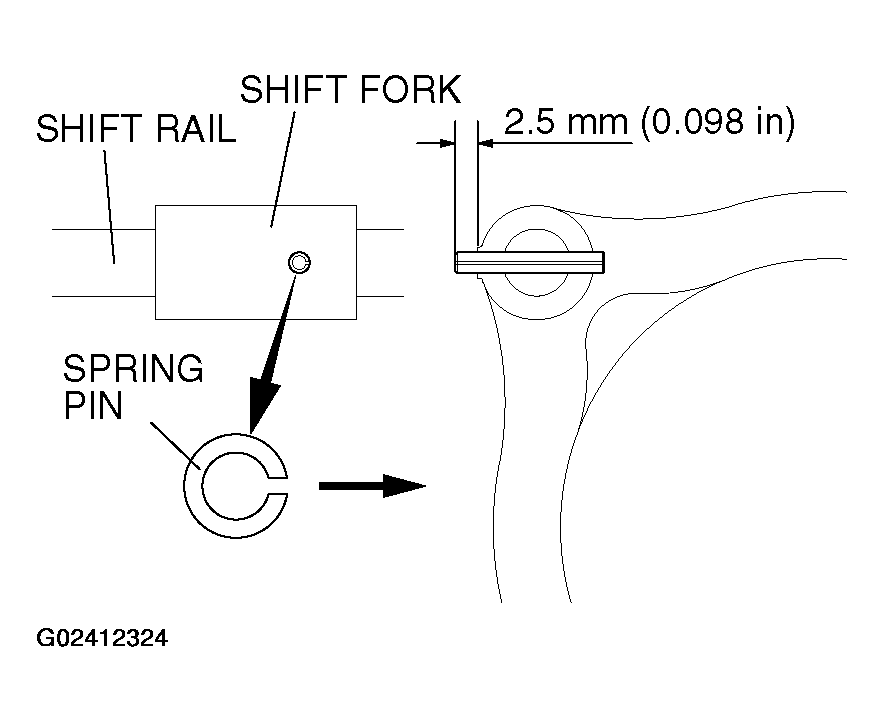

- Insert the new spring pin. Push it in as shown in illustration so that the slit and center axis of the rail are aligned.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
