>> F << Sealing Cap Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tools MB990927 and MB990938, press install the sealing cap onto the case.

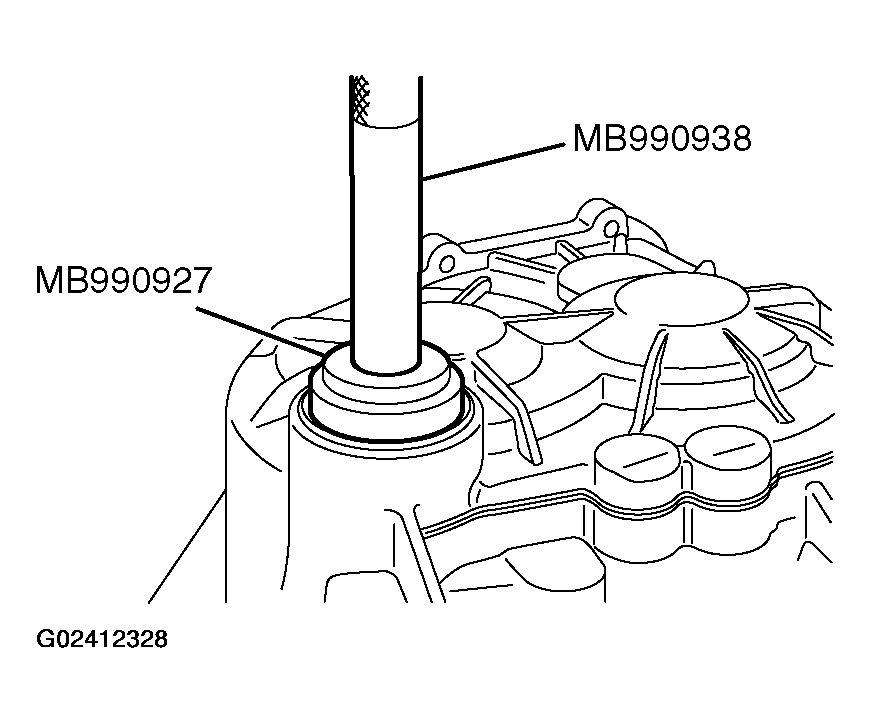

    Fig 1: Pressing Sealing Cap Onto Case
    G02412328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Evenly press the sealing cap so it is fully seated and not at an angle.

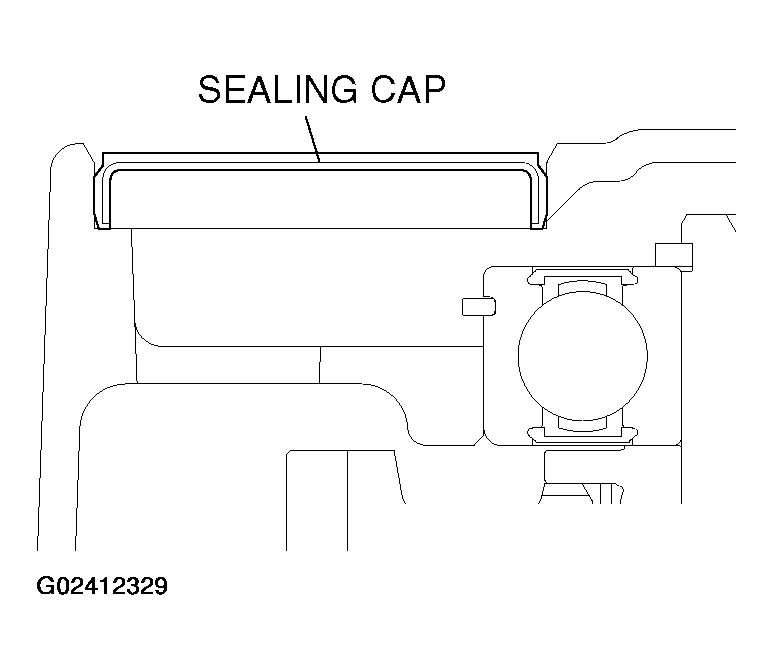

    Fig 2: Ensuring Sealing Cap Is Fully Seated
    G02412329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
