>> G << Under Cover Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Squeeze sealant onto the case. Do not leave gaps or excess amounts, otherwise oil leaks are likely.

Apply a 2 mm (0.08 inch) diameter bead of sealant (Mitsubishi Genuine Part number MD997740 or equivalent) as illustrated onto the under cover.
NOTE: Be sure to install the under cover to the case quickly while the sealant is still wet (within 15 minutes).
Install the under cover to the transaxle case and tighten the bolts to specified torque.
- Tightening torque: 7.0 +/- 1.0 N.m (61 +/- 9 in-lb)
NOTE: After installation, keep the sealed area away from oil for approximately one hour.

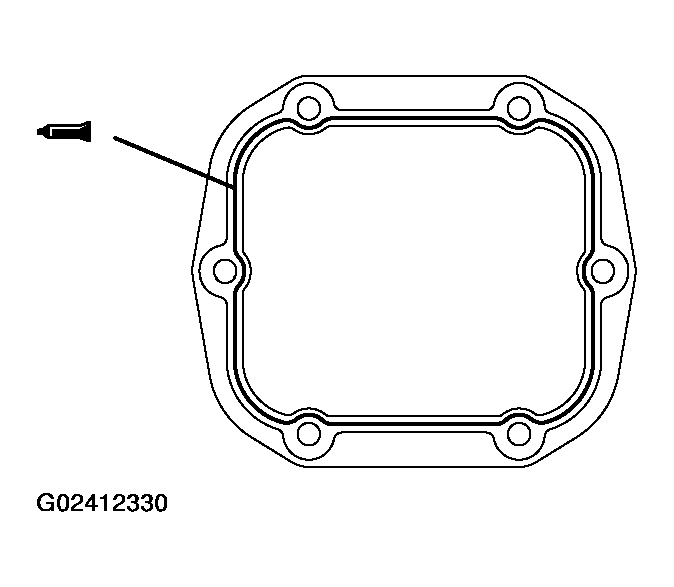

Fig 1: Applying Bead Of Sealant (Mitsubishi Genuine Part Number MD997740) Onto Under Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
