>> I << Speedometer Gear Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4) to the O-ring of the speedometer gear. Install into the transaxle housing.
  2. Tighten the bolt to specified torque.
    • Tightening torque: 4.0 +/- 1.0 N.m (35 +/- 9 in-lb)

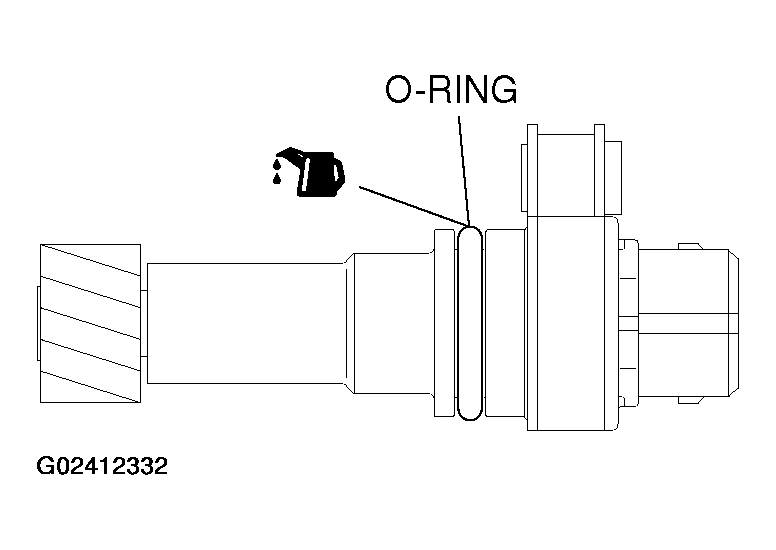

    Fig 1: Applying Gear Oil (Hypoid Gear Oil SAE 75W-90) To O-Ring Of Speedometer Gear
    G02412332Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
