>> J << Select Lever Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply grease (Mitsubishi Genuine Part number 0101011 or equivalent) to the control shaft sliding portion of the select lever shoe.
  2. Install the select lever and tighten the bolts to specified torque.
    • Tightening torque: 19 +/- 3 N.m (14 +/- 2 ft-lb)

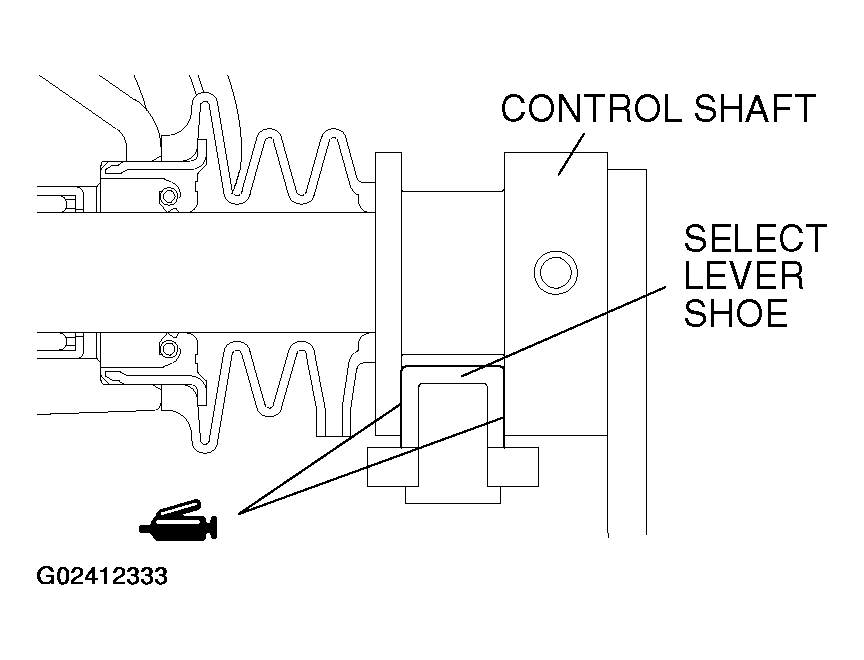

    Fig 1: Applying Grease To Control Shaft Sliding Portion Of Select Lever Shoe
    G02412333Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
