<< C >> 3RD-4TH Speed Shift Rail/3RD-4TH Speed Shift Fork/5TH Speed-Reverse Shift Rail/5TH Speed-Reverse Shift Fork Removal

WARNING: This page is about a different variant/trim than selected.

Shift the 3rd-4th speed shift fork and 5th speed-reverse shift fork in the direction shown in illustration.

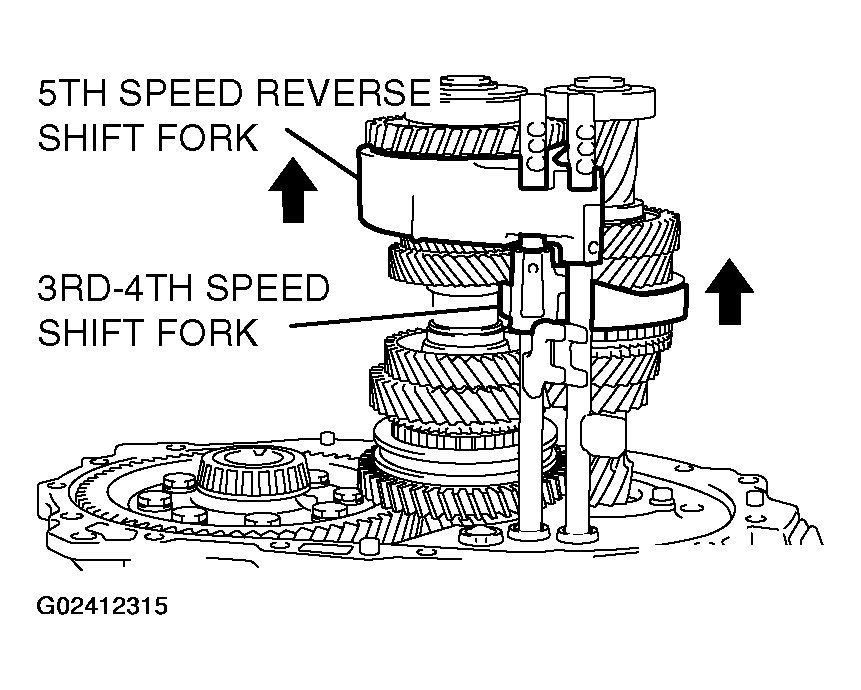

Fig 1: Identifying Shift Direction Of 3rd-4th Speed Shift Fork And 5th Speed-Reverse Shift Fork
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Pull up on the 3rd-4th speed shift rail and 5th speed-reverse shift rail and take them out of the hole in the clutch housing.
Side the 3rd-4th speed shift rail and 5th speed-reverse shift rail in the direction shown in illustration, and remove them together with the shift forks.

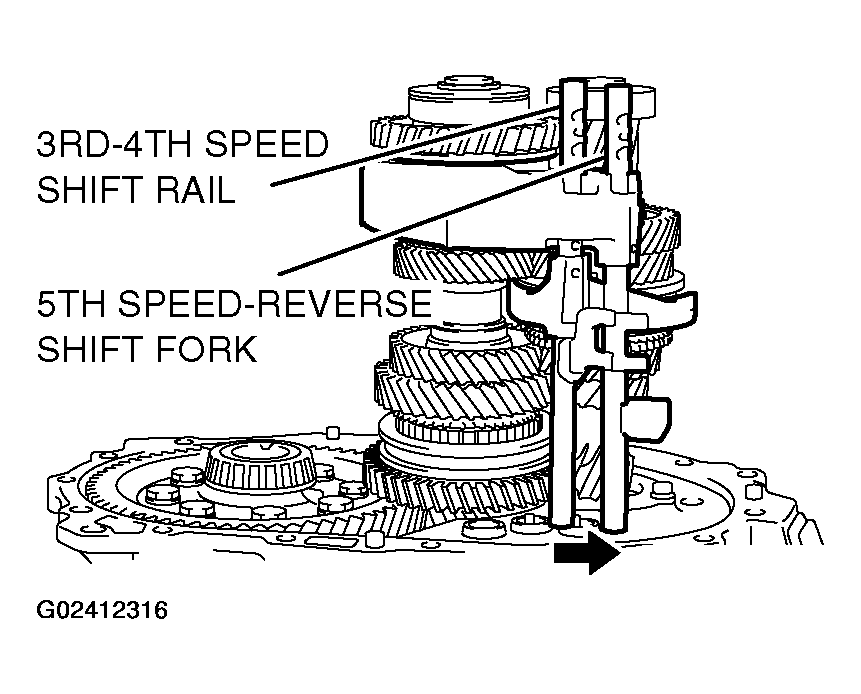

Fig 2: Identifying Slide Direction Of 3rd-4th Speed Shift Rail And 5th Speed-Reverse Shift Rail
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
