<< D >> Input Shaft And Output Shaft Removal

WARNING: This page is about a different variant/trim than selected.

Remove the input and output shafts together.

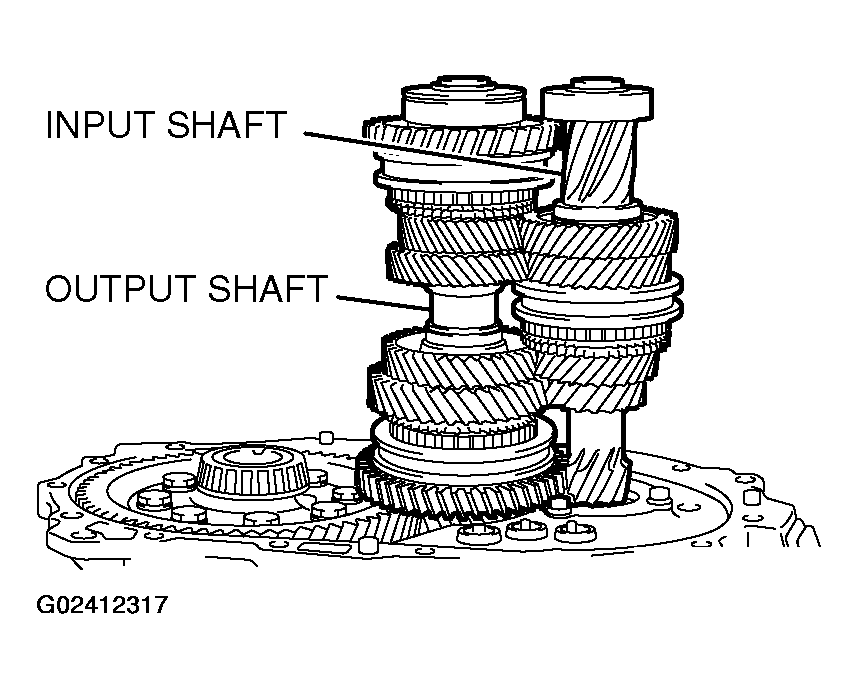

Fig 1: Identifying Input And Output Shafts
G02412317Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
