Disassembly Steps Of Transaxle And Special Tools

WARNING: This page is about a different variant/trim than selected.

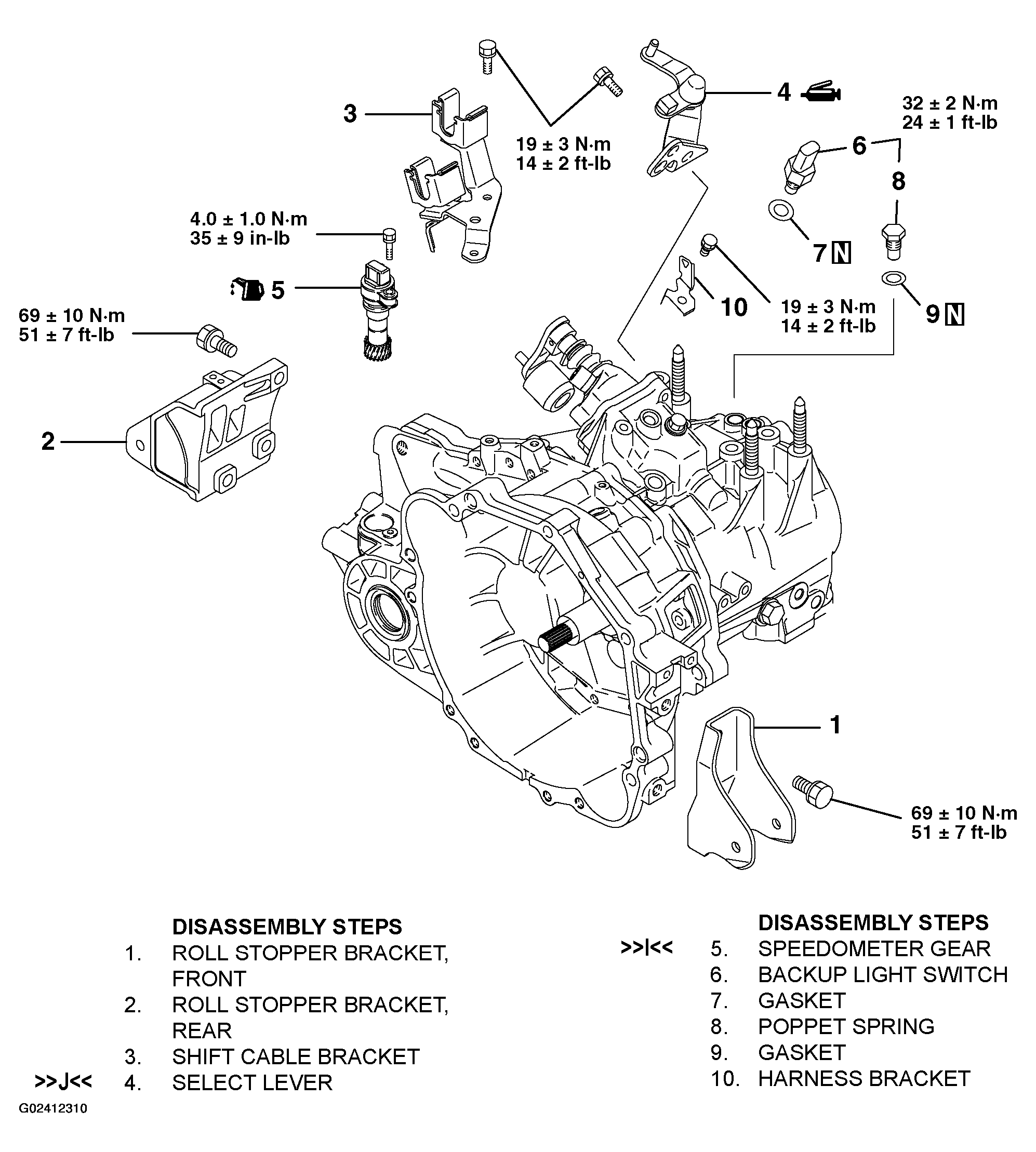

Fig 1: Disassembly Steps Of Transaxle (1 Of 3)
G02412310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

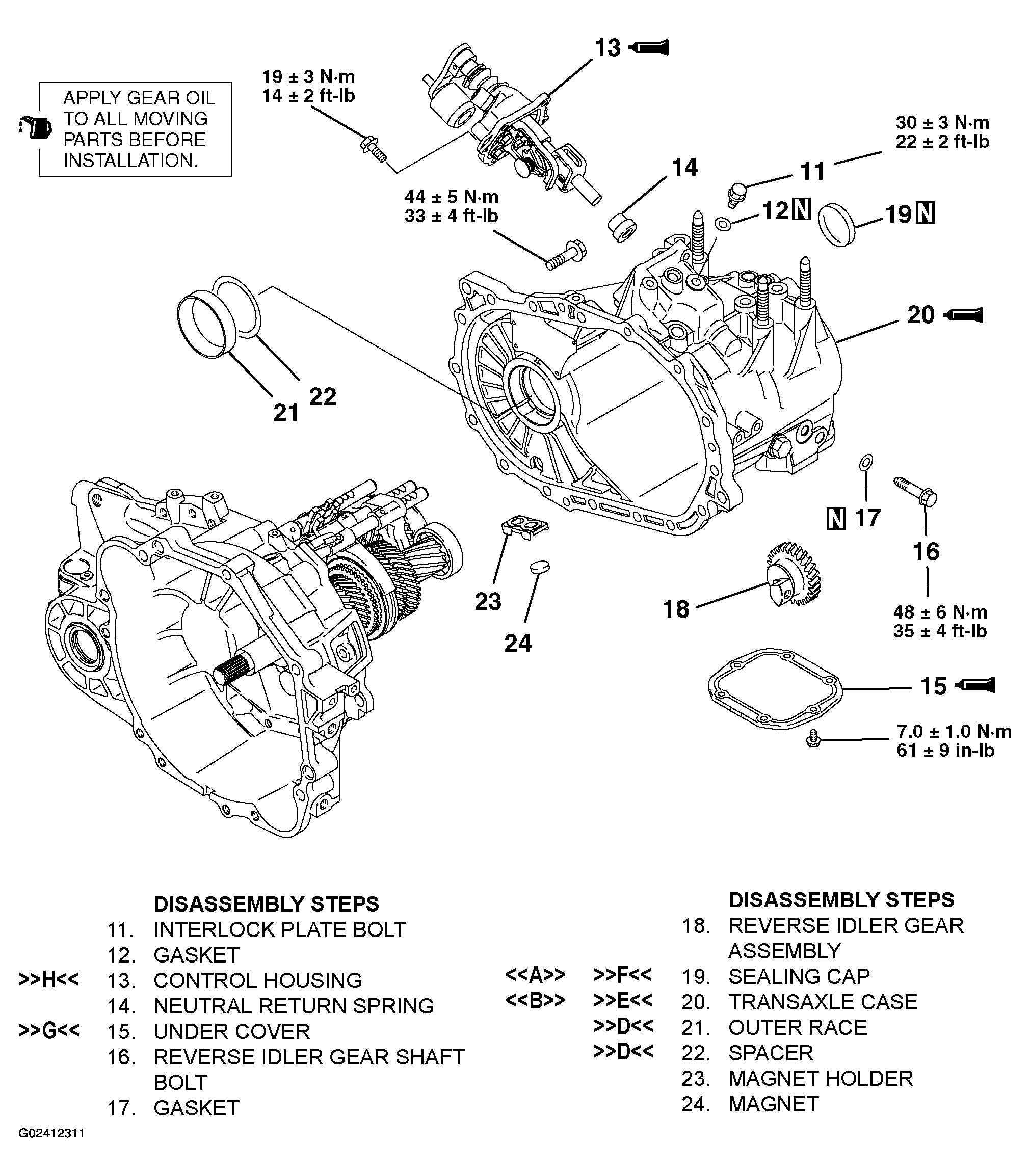

Fig 2: Disassembly Steps Of Transaxle (2 Of 3)
G02412311Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

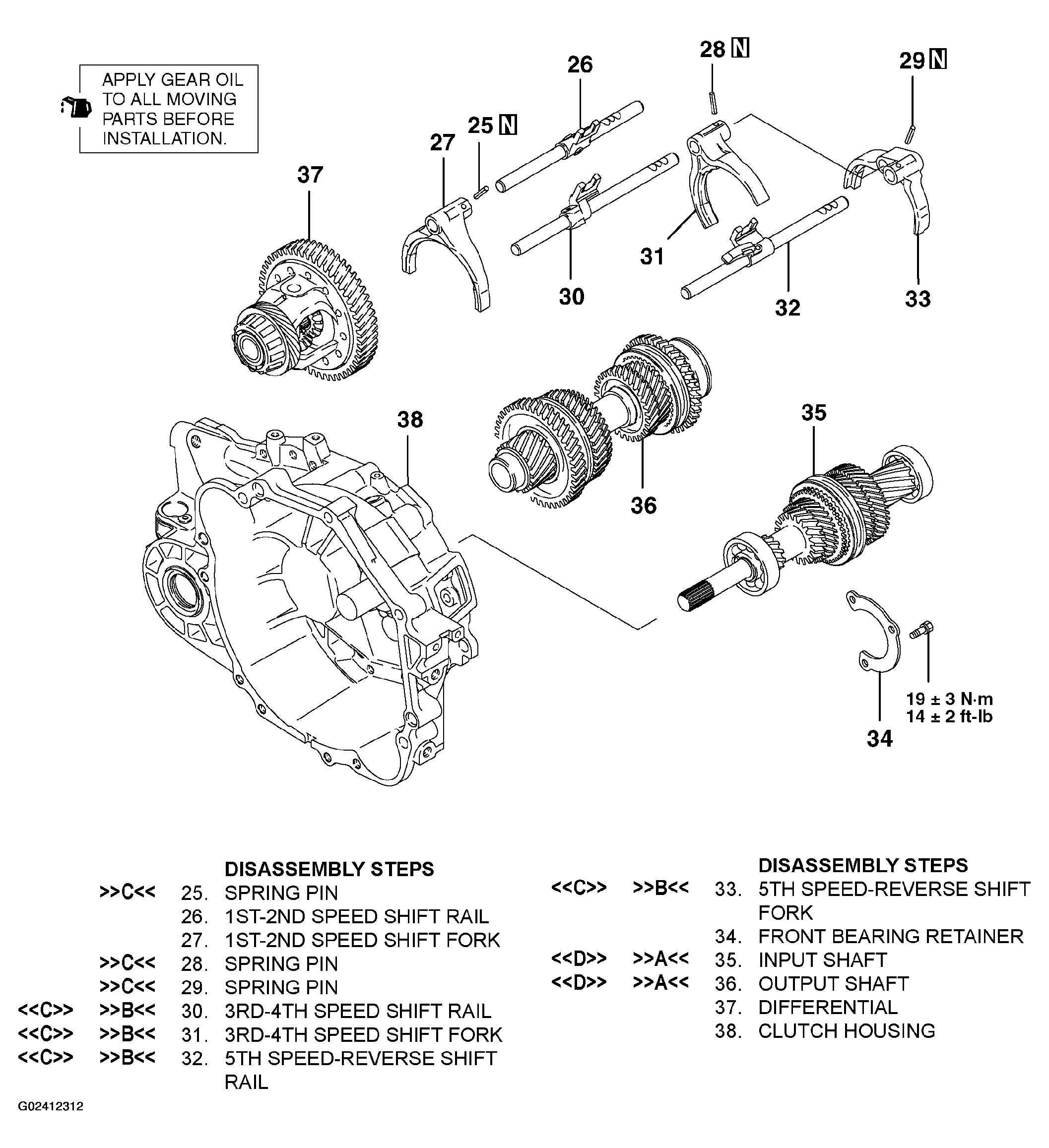

Fig 3: Disassembly Steps Of Transaxle (3 Of 3)
G02412312Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
