Connector Engagement Inspection
WARNING: This page is about a different variant/trim than selected.
Required Special Tool:
MB991219: Inspection Harness (contained in MB991223 Test Harness)

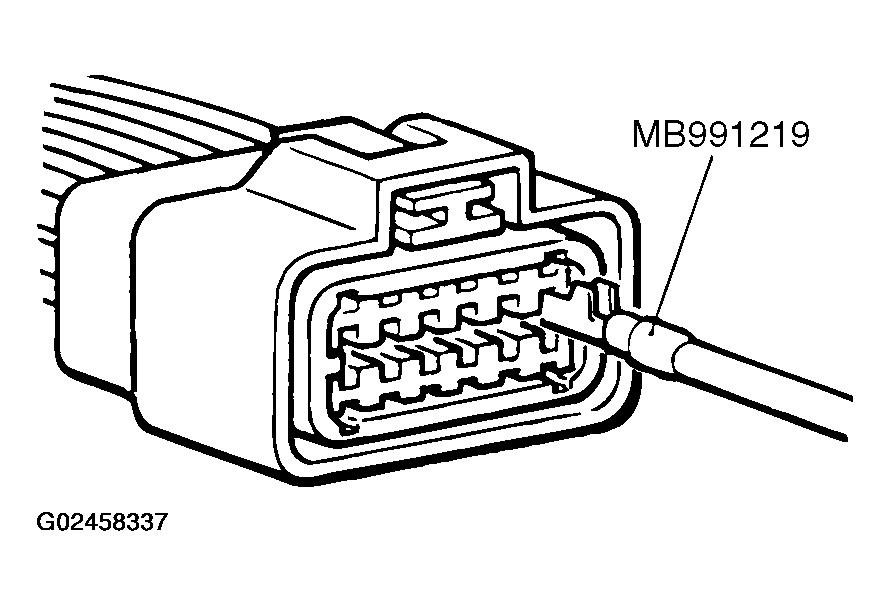

Use special tool, MB991219 to inspect the engagement of the male pins and female pins. [Pin drawing force: 1 N (0.2 pound) or more]
