Front Seatback Assembly With Side-Airbag Module

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • If any improper part is found during the following inspection, replace the front seatback assembly with a new one.
  • Dispose of the old one according to the specified procedure. (Refer to AIR BAG MODULE DISPOSAL PROCEDURES .)
  • Never attempt to measure the circuit resistance of the air bag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.
  1. Check the air bag module deployment section for dents or deformation.
  2. Check the connector for damage; check the terminals for deformation; and check the harness for binding.

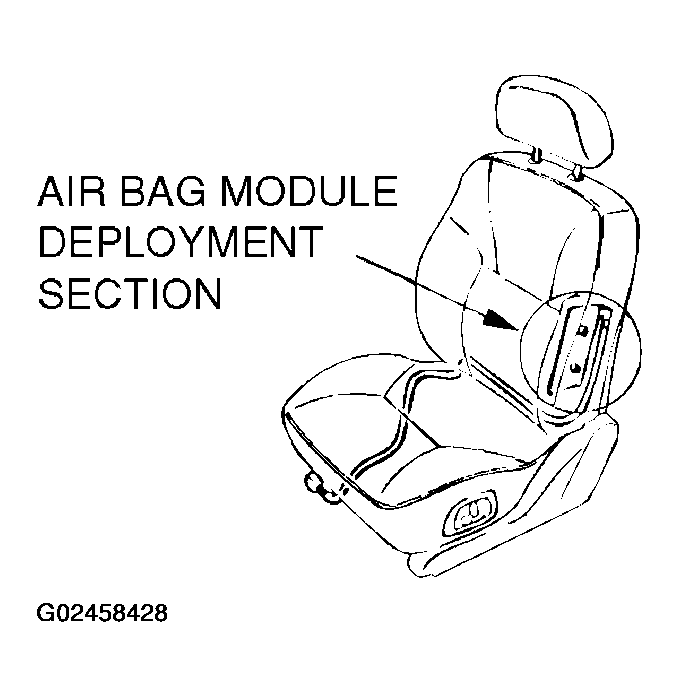

    Fig 1: Checking Air Bag Module Deployment Section
    G02458428Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
