>> A << Dynamic Damper/Damper Band/ETJ Boot Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There should be no grease adhered to the rubber part of the dynamic damper.

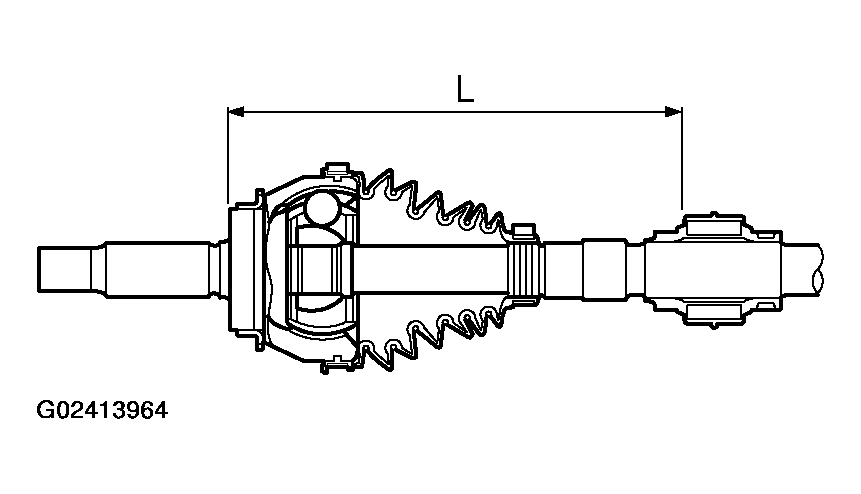

- Install the dynamic damper in the position (L) shown in the illustration.
- L: 230 +/- 3 mm (9.1 +/- 0.12 inches)
- Secure the damper bands.
- Wrap plastic tape around the shaft spline, and then install the ETJ boot band (small) and ETJ boot.
