>> C << Center Bearing Installation

WARNING: This page is about a different variant/trim than selected.

Use special tools MB990938 and MB990932 to press-fit the center bearing into the center bearing bracket.

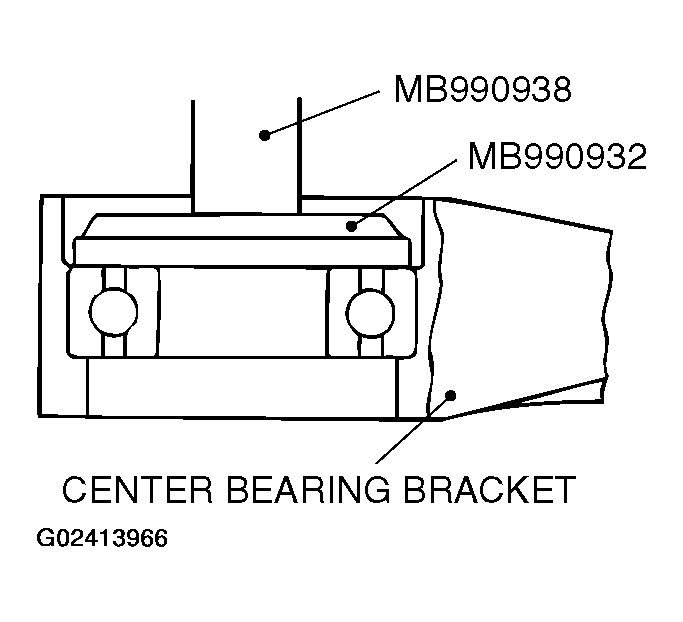

Fig 1: Applying Special Tools MB990938 And MB990932 To Press-Fit Center Bearing Into Center Bearing Bracket
G02413966Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
