>> E << Inner Shaft Installation

WARNING: This page is about a different variant/trim than selected.

Use special tool MB991172 to hold the center bearing inner race, and then press-in the inner shaft.

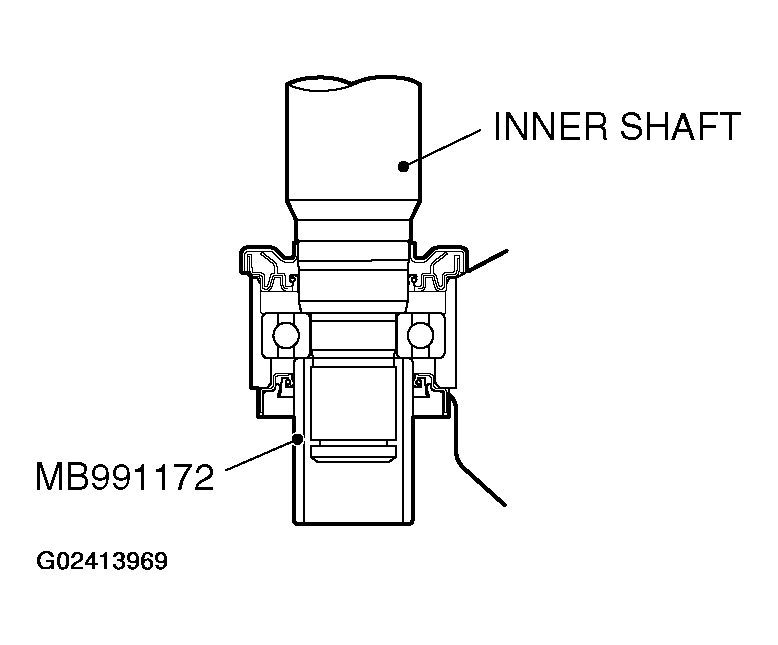

Fig 1: Pressing Center Bearing Inner Race In Inner Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Apply repair kit grease to the inner shaft spline, then press fit it into the ETJ case.
NOTE: When press-fitting the inner shaft into the ETJ case, apply a thin coat of repair kit grease to the dust seal outer lip part and the outside edge of the ETJ axial part.

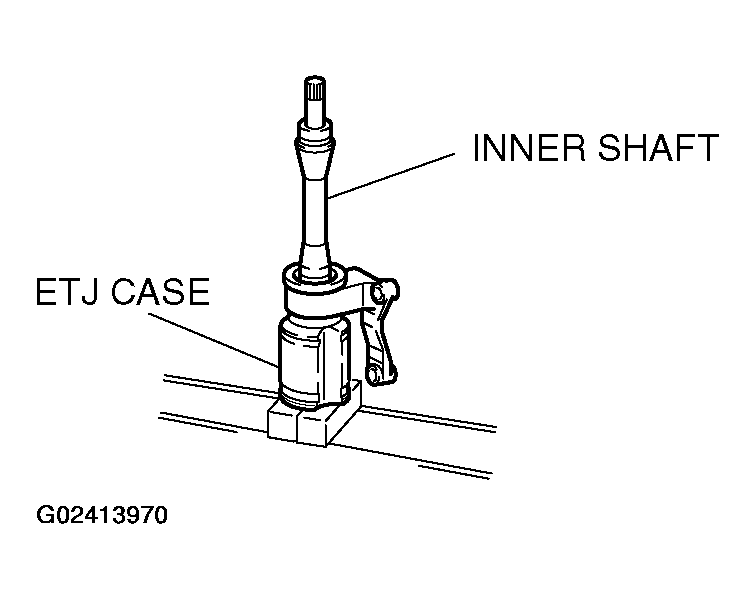

Fig 2: Applying Repair Kit Grease To Inner Shaft Spline
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
