>> G << ETJ Boot Band (Small)/ETJ Boot Band (Large) Installation
WARNING: This page is about a different variant/trim than selected.

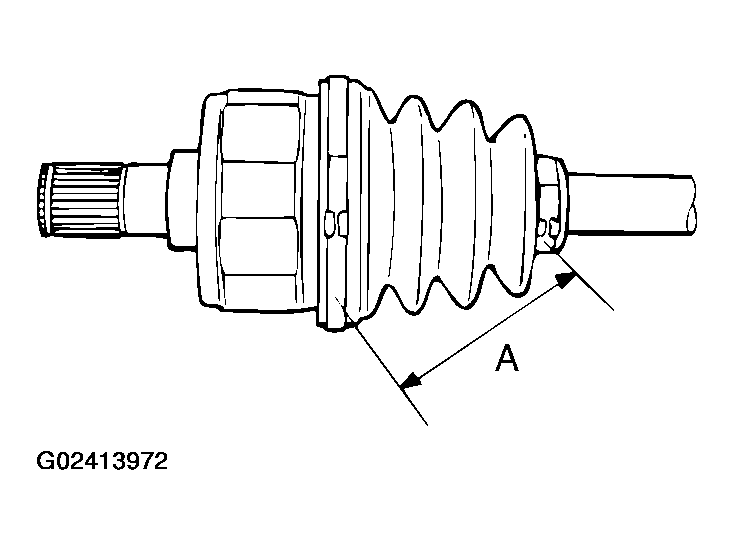

Set the ETJ boot bands at the specified distance in order to adjust the amount of air inside the ETJ boot, and then tighten the ETJ boot band (small), ETJ boot band (large) securely.
- Standard value (A): 80 +/- 3 mm (3.15 +/- 0.12 inches)
