Lubrication Points

WARNING: This page is about a different variant/trim than selected.

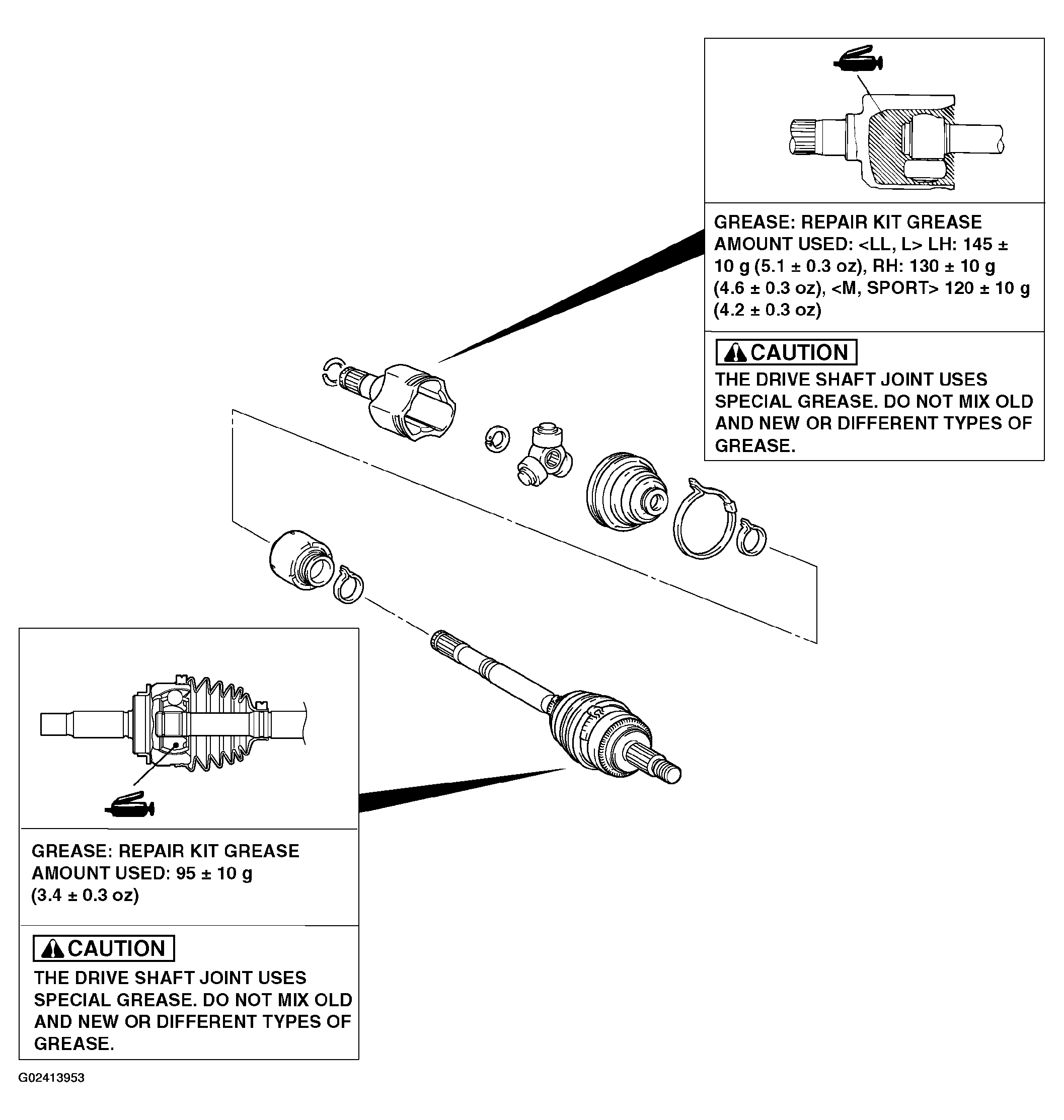

Fig 1: Identifying Lubrication Points
G02413953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

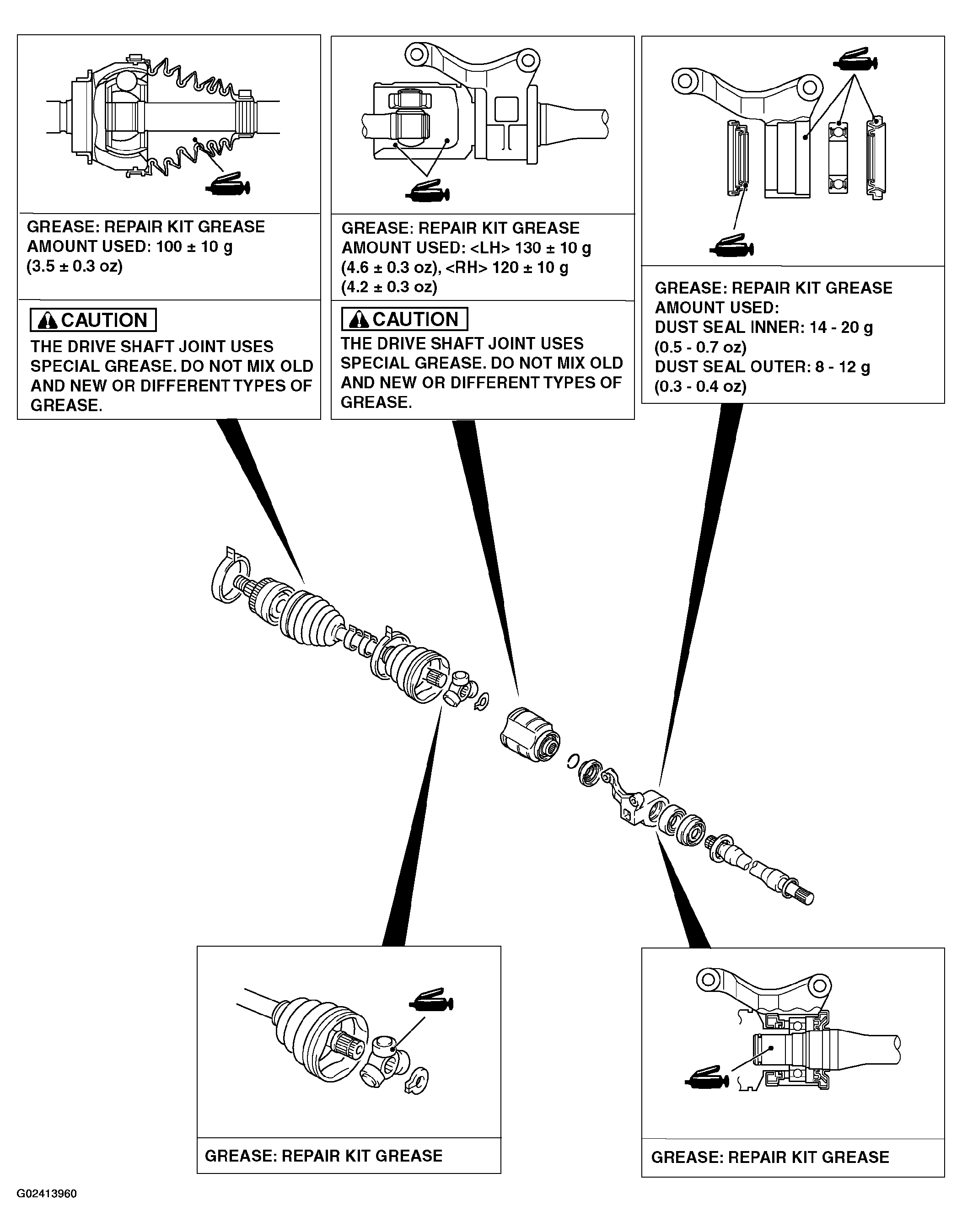

Fig 1: Identifying Lubrication Points
G02413960Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
