>> A << Dynamic Damper/Damper Band/TJ Boot Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the dynamic damper in the position shown in the illustration.
    ITEM REFERENCE

    ITEM  A (LH SIDE) mm (inch)  B (RH SIDE) mm (inch)
    LL, L 223 +/- 3 (8.8 +/- 0.12) 428 +/- 3 (16.9 +/- 0.12)
    M, SPORT 230 +/- 3 (9.1 +/- 0.12) 415 +/- 3 (16.3 +/- 0.12)

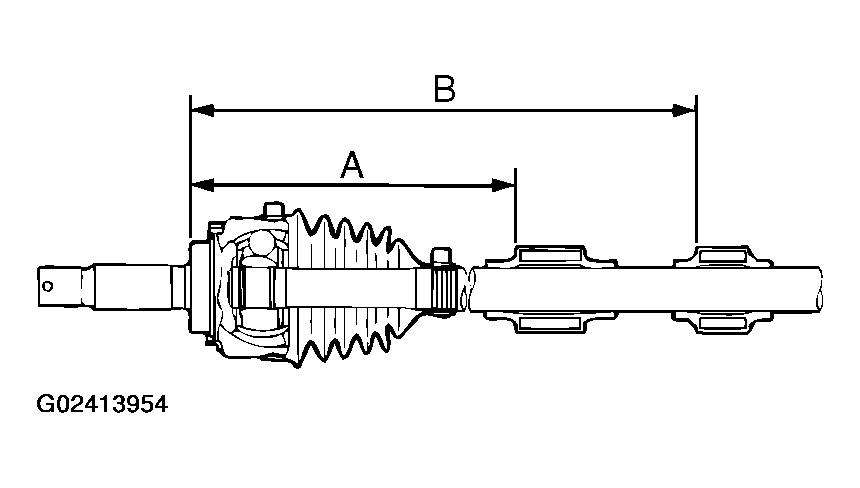

    Fig 1: Installing Dynamic Damper
    G02413954Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • There should be no grease adhered to the rubber part of the dynamic damper.
    • Be careful not to confuse the damper band with the TJ boot band (small). Locate the identification numbers stamped on the band levers.
    ITEM AND IDENTIFICATION NUMBER REFERENCE

    ITEM  INDENTIFICATION NO.
    Damper band  8382
    TJ boot band  E687

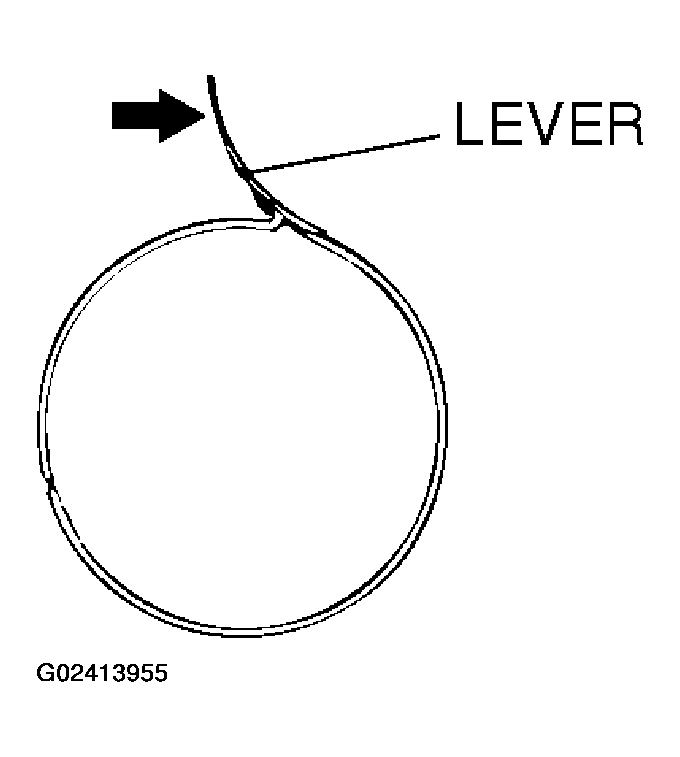

    Fig 2: Identifying Band Lever
    G02413955Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Secure the damper bands.
  3. Wrap plastic tape around the shaft spline, and then install the TJ boot band (small) and TJ boot.
