>> B << Spider Assembly/TJ Case Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- The driveshaft joint use special grease. Do not mix old and new or different types of grease.
- If the spider assembly has been cleaned, take special care to apply the specified grease.

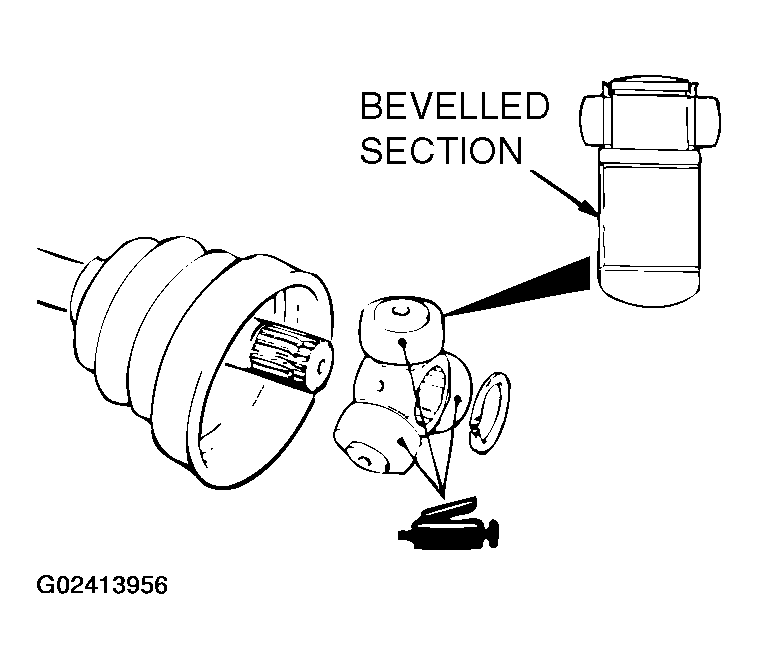

- Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller.
- Specified grease: Repair kit grease
- Install the spider assembly to the shaft from the direction of the spline bevelled section.
CAUTION: The driveshaft joint use special grease. Do not mix old and new or different types of grease.

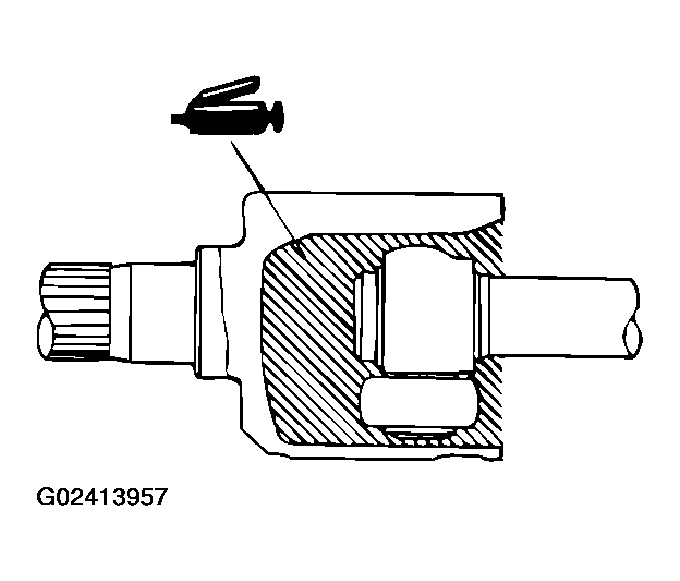

- After applying the specified grease to the T.J. case, insert the driveshaft and apply grease again.
- Specified grease: Repair kit grease
- Amount to use:
- < LL, L > LH: 145 +/- 10 g (5.1 +/- 0.3 oz), RH: 130 +/- 10 g (4.6 +/- 0.3 oz)
- < M, SPORT > 120 +/- 10 g (4.2 +/- 0.3 oz)
NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.
