>> C << TJ Boot Band (Small)/TJ Boot Band (Large) Installation
WARNING: This page is about a different variant/trim than selected.

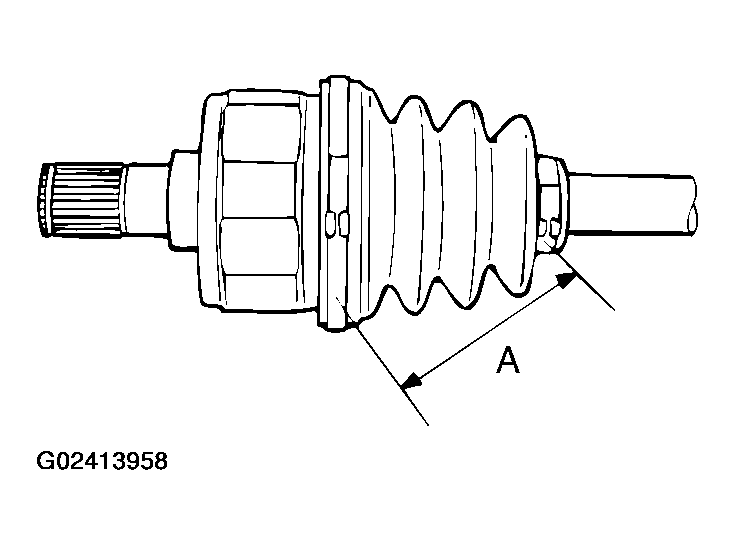

Set the T.J. boot bands at the specified distance in order to adjust the amount of air inside the T.J. boot, and then tighten the T.J. boot bands securely.
- Standard value (A): 90 +/- 3 mm (3.54 +/- 0.12 in)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
