>> C << Washer/Driveshaft Nut Installation

WARNING: This page is about a different variant/trim than selected.
  1. Be sure to install the driveshaft washer in the specified direction.
    CAUTION: Before securely tightening the driveshaft nuts, make sure there is no load on the wheel bearings. Otherwise the wheel bearing will be damaged.
  2. Using special tool MB990767, tighten the driveshaft nut.

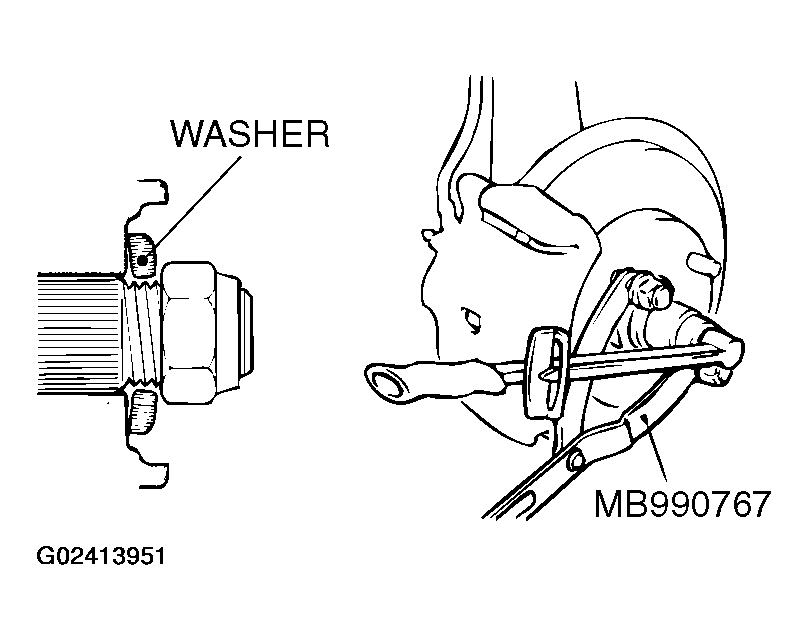

    Fig 1: Tightening Driveshaft Nut
    G02413951Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
