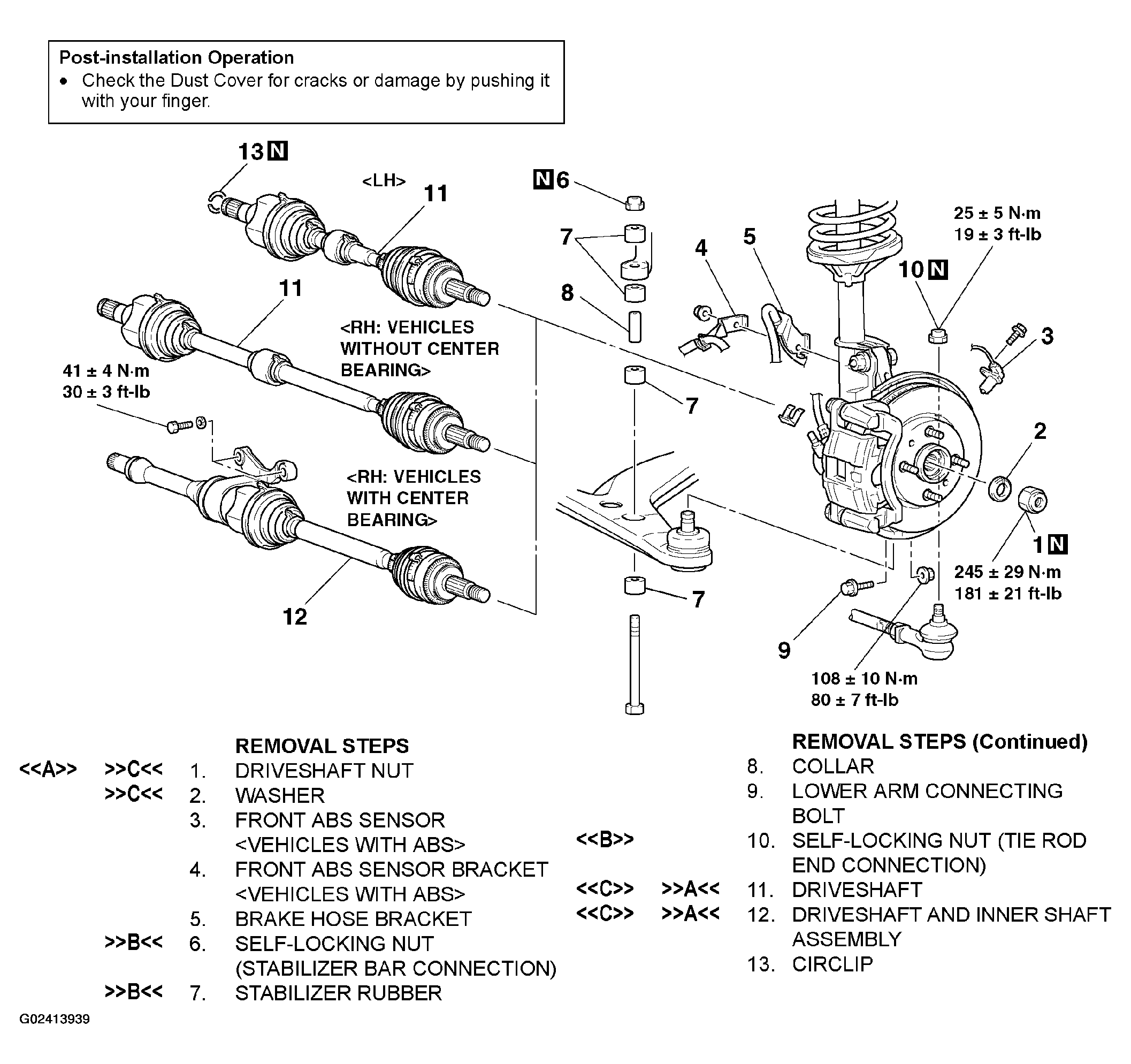

Removal And Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of driveshaft against other parts when removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.
- For vehicles with ABS, be careful not to strike the pole piece at the tip of the front ABS sensor with tools during servicing work.
Required Special Tools:
- MB990241: Axle Shaft Puller
- MB990242: Puller Shaft
- MB990244: Puller Bar
- MB991354: Puller Body
- MB990767: End Yoke Holder
- MB991460: Plug
- MB991017: Front Hub Remover and Installer
- MB991000: Spacer
- MB991897: Ball Joint Remover
