>> C << Hub End Play Check
WARNING: This page is about a different variant/trim than selected.

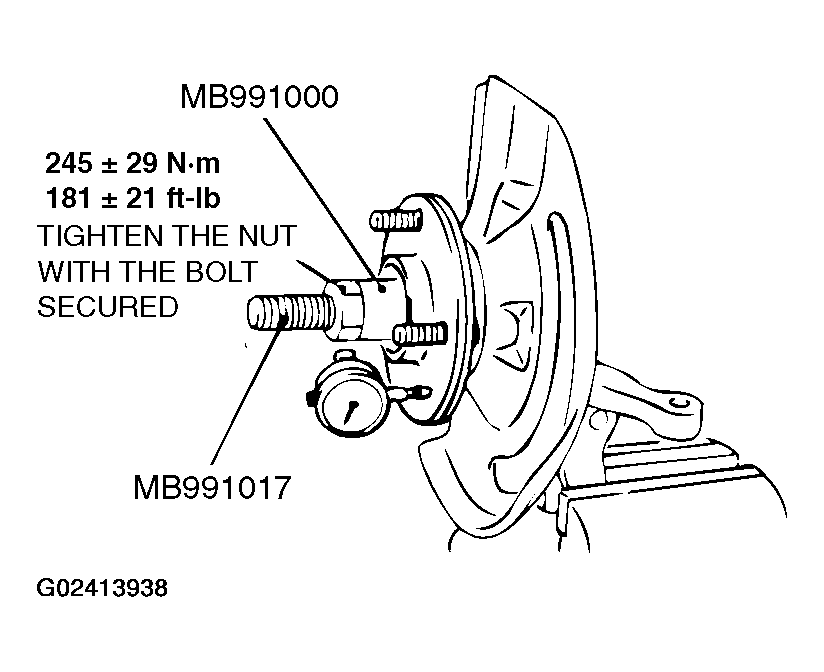

- Measure to determine whether the end play of the hub is within the specified limit or not.
- Limit: 0.05 mm (0.002 inch)
- If the starting torque and hub end play are not within the limit range while the nut is tightened to 245 +/- 29 N.m (181 +/- 21 ft-lb), the bearing, hub and/or knuckle have probably not been installed correctly. Replace the bearing and re-install.
