>> A << Stabilizer Rubber/Self-Locking Nut (Stabilizer Bar Connection) Installation
WARNING: This page is about a different variant/trim than selected.

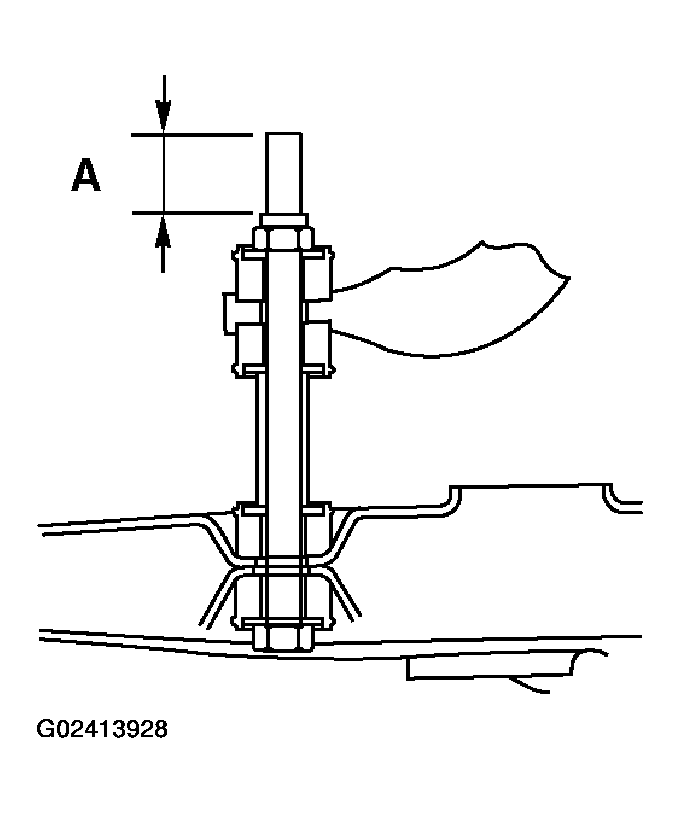

Install the stabilizer rubber and collar as shown in the figure, and tighten the self-locking nut so that the protruding length of the stabilizer bar mounting bolt protruding part meets its standard value (A).
- Standard value (A): 22 +/- 1.5 mm (0.87 +/- 0.06 inch)
