Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

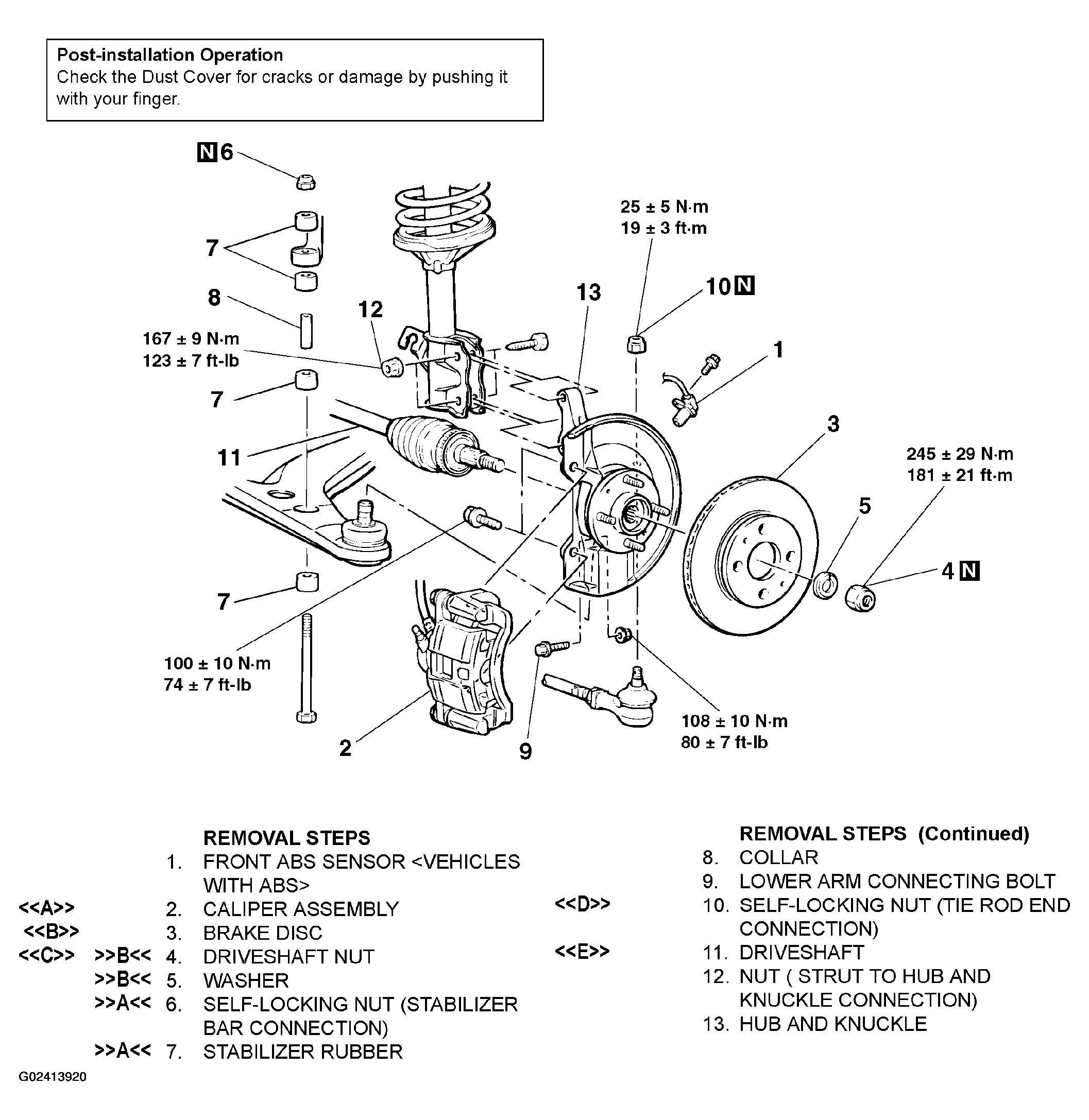

Fig 1: Exploded View Of Front Axle Hub Assembly Components
G02413920Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
